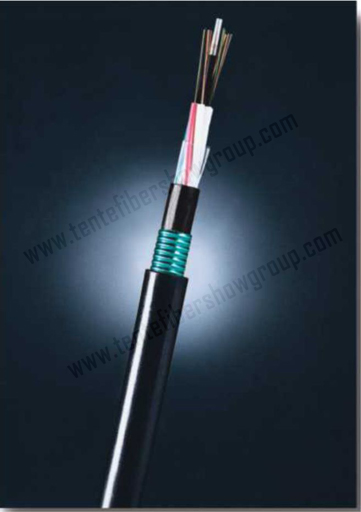

Stranded Loose Tube Armored Cable（GYTY53）

Description

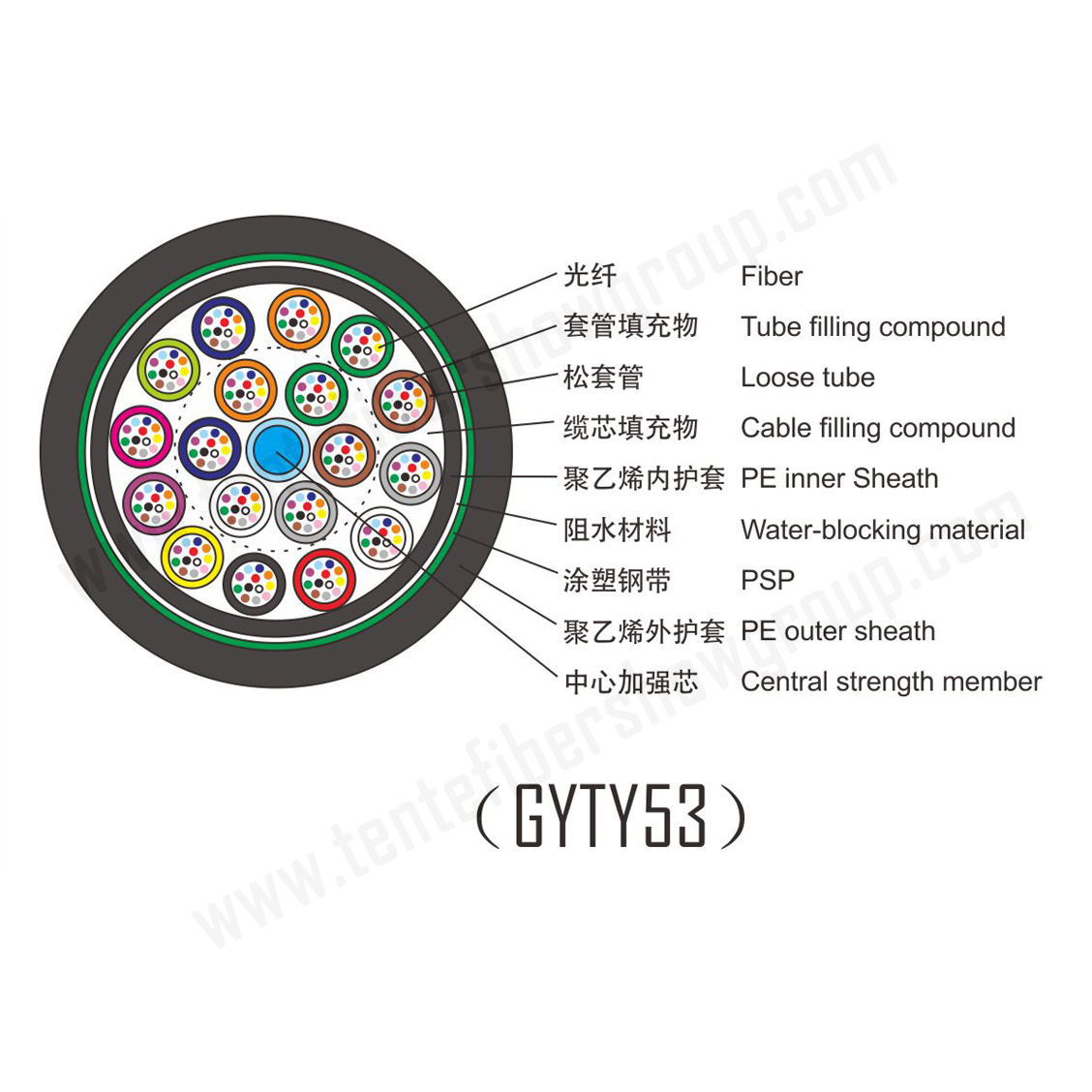

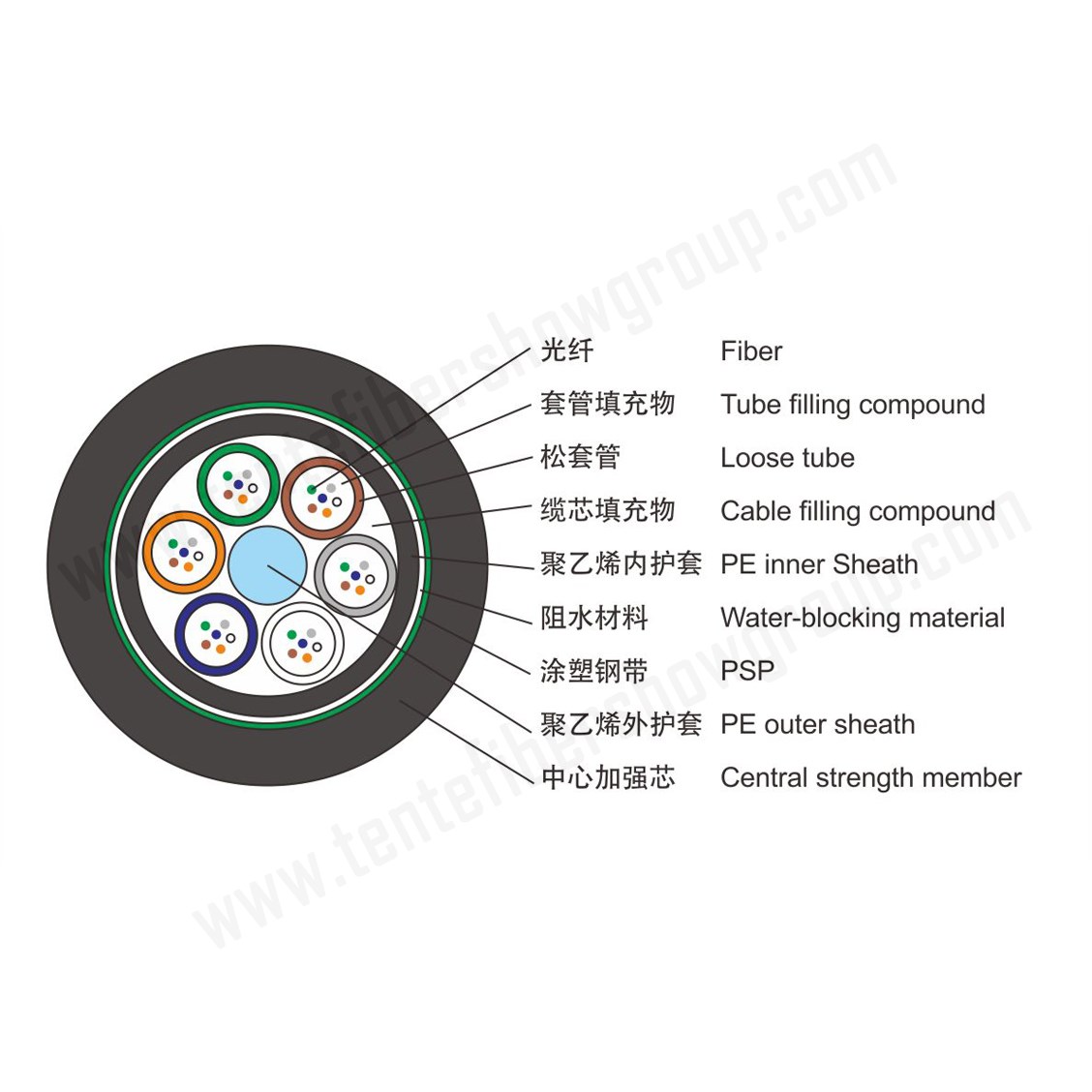

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

PSP enhancing moisture-proof

Water-blocking material

Standards

GYTS53 cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

Application: Duct / Aerial/Direct buried

Optical Characteristics

Technical Parameters

Note：Storage/Operating Temperature: -40℃ to +70℃

Note：

a. Suffix Xn denotes fiber type .

b. The colour arrangements of fiber and tube are specified in the colour identification table.

c. The nominal value of the PE outer sheath thickness is 1.8mm while the nominal value of the PE inner sheath thickness is 0.9mm。
