Description:
Stranded Loose Tube Armored Flame-retardant Cable（GYTZA53）
Details:

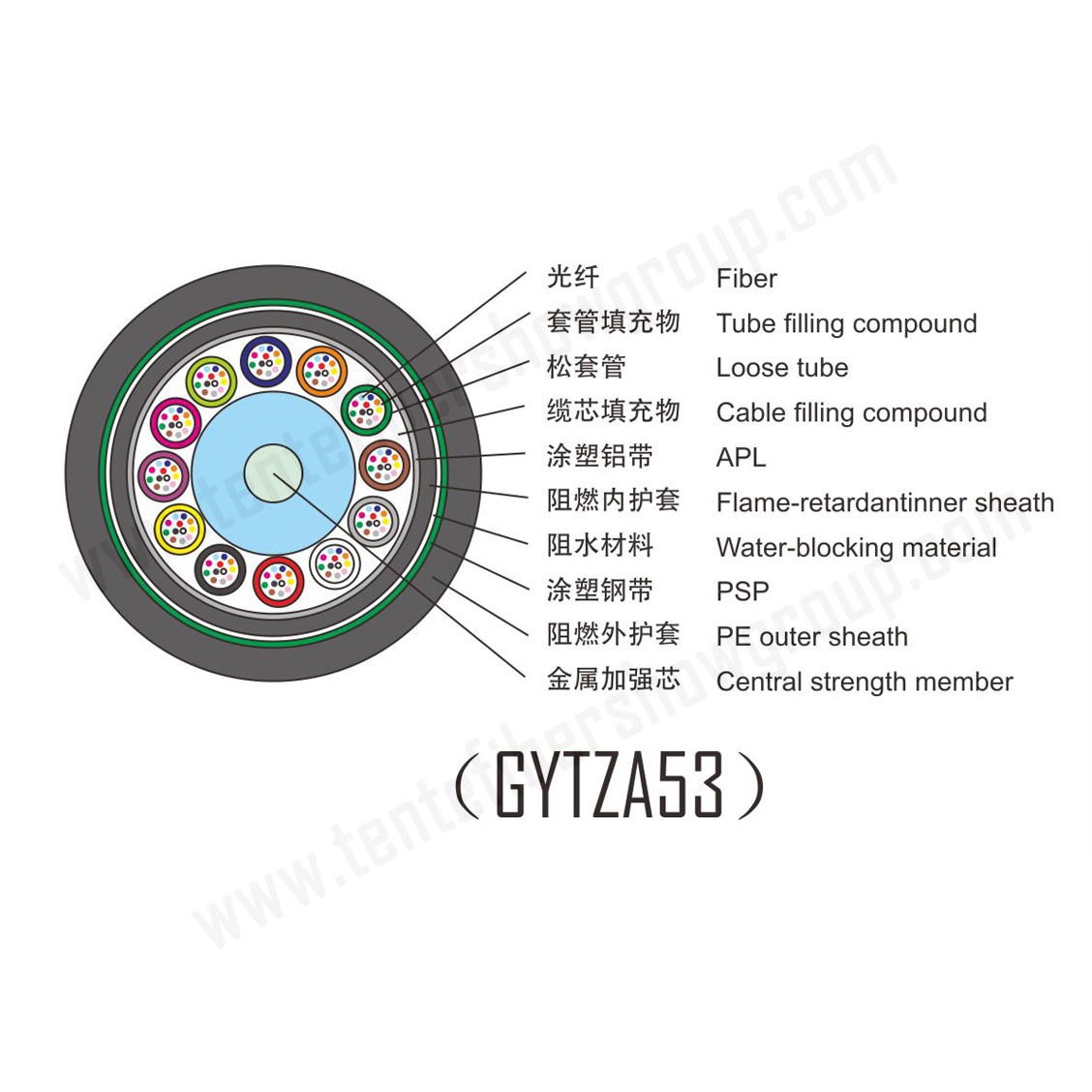

Stranded Loose Tube Armored
Flame-retardant Cable（GYTZA53）
Description
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin flame retardant inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a flame retardant outer sheath.
Characteristics
Good mechanical, temperature performance and flame- retardant property
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material
Standards
GYTZA53 cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.
Application: Duct / Aerial/Direct buried
Optical Characteristics
G.652 | G.655 | 50/125 µm | 62.5/125 µm | ||
Attenuation（+20℃） | @ 850 nm | ≤ 3.0 dB/km | ≤ 3.0 dB/km | ||
@1300 nm | ≤ 1.0 dB/km | ≤ 1.0 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
Bandwidth（Class A） | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 1000 MHz·km | ≥ 600 MHz·km | |||
Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Technical Parameters
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
GYTZA53-2~6Xn | 2~6 | 1 | 5 | 13.9 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-8~12Xn | 8~12 | 2 | 4 | 13.9 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-14~18Xn | 14~18 | 3 | 3 | 13.9 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-20~24Xn | 20~24 | 4 | 2 | 13.9 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-26~30Xn | 26~30 | 5 | 1 | 13.9 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-32~36Xn | 32~36 | 6 | 0 | 13.9 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-38~48Xn | 38~42 | 7 | 1 | 15.5 | 279 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-50~60Xn | 50~60 | 5 | 0 | 15.5 | 279 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-62~72Xn | 62~72 | 6 | 0 | 16.1 | 295 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-74~84Xn | 74~84 | 7 | 1 | 18.2 | 347 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-86~96Xn | 86~96 | 8 | 0 | 18.2 | 347 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-98~108Xn | 98~108 | 9 | 1 | 19.4 | 389 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-110~120Xn | 110~120 | 10 | 0 | 19.4 | 389 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-122~132Xn | 122~132 | 11 | 1 | 21.1 | 443 | 1000/3000 | 1000/3000 | 10D/20D |
GYTZA53-134~144Xn | 134~144 | 12 | 0 | 21.1 | 443 | 1000/3000 | 1000/3000 | 10D/20D |
Note：Storage/Operating Temperature: -40℃ to +70℃
Note：
a. Suffix Xn denotes fiber type .
b. The colour arrangements of fiber and tube are specified in the colour identification table.
c. The nominal value of the flame retardant outer sheath thickness is 1.8mm while the nominal value of the flame retardant inner sheath thickness is 0.9mm.
