Stranded Loose Tube Flame-retardant Cable（GYTZS）

Details:

Stranded Loose Tube Flame-retardant Cable（GYTZS）




13-2 （GYTZS）.jpg


Description

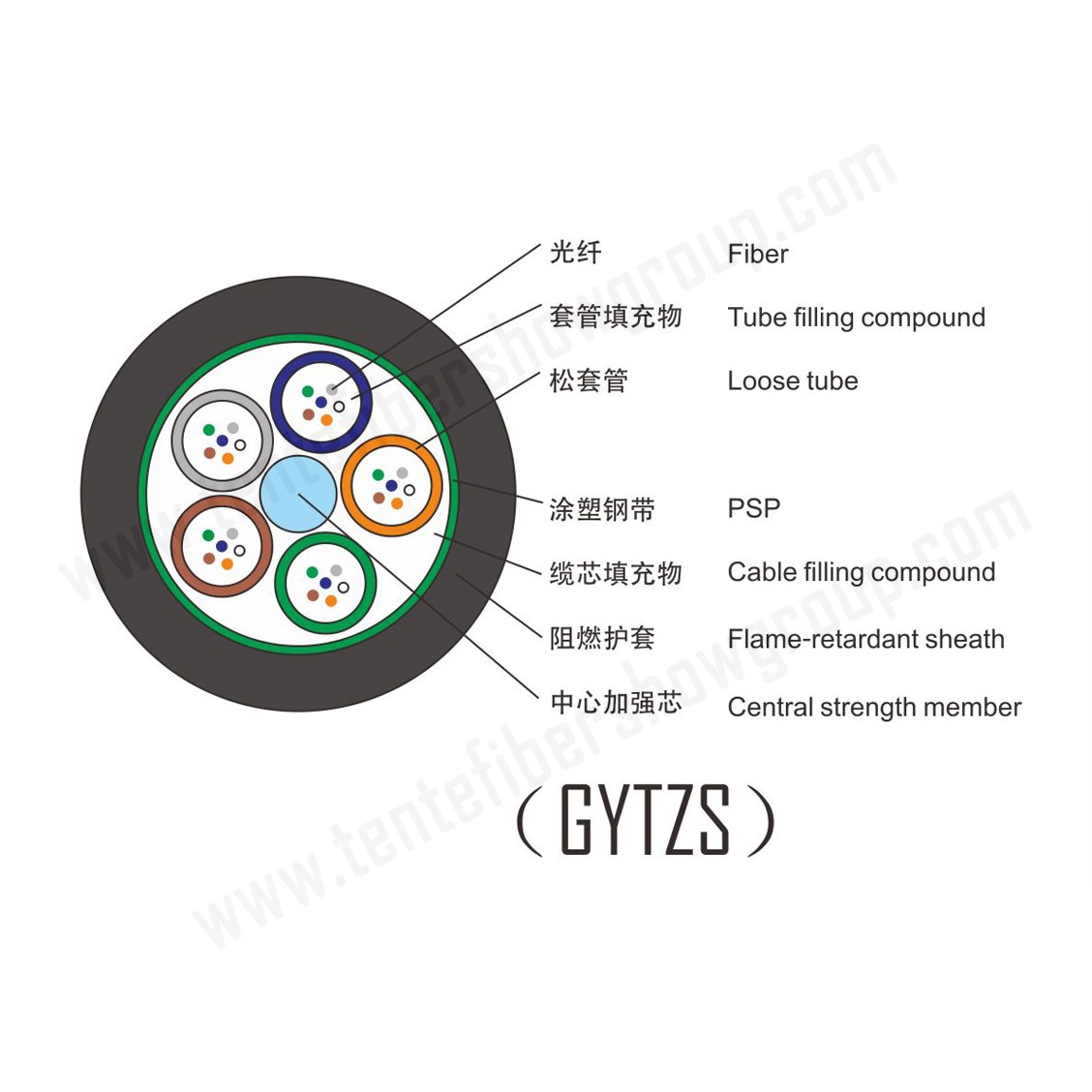

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with PE for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a flame-retardant sheath.



Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Specially designed compact structure is good at preventing loose tubes from shrinking

Crush resistance and flexibility

Special sheath material ensures excellent flame-retardant performance

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

PSP enhancing moisture-proof



Standards

GYTZS cable complies with Standard YD/T 901-2001 as well as MT386-1995; and passes MA certification.

Application: Duct /Aerial /Direct buried



Optical Characteristics



G.652

G.655

50/125 µm

62.5/125 µm

Attenuation（+20℃）

@ 850 nm



≤ 3.0 dB/km

≤ 3.0 dB/km

@1300 nm



≤ 1.0 dB/km

≤ 1.0 dB/km

@1310 nm

≤ 0.36 dB/km

≤ 0.40 dB/km



@1550 nm

≤ 0.22 dB/km

≤ 0.23 dB/km



Bandwidth（Class A）

@ 850 nm



≥ 600 MHz·km

≥ 200 MHz·km

@1300 nm



≥ 1200 MHz·km

≥ 600 MHz·km

Numerical Aperture



0.200 ± 0.015 NA

0.275 ± 0.015 NA

Cable Cut-off   Wavelength lcc

≤ 1260 nm

≤ 1450 nm





Technical Parameters

Cable Type
  (Increased by 2   fibers)

Fiber Count

Tubes

Fillers

Cable Diameter
  mm

 Cable Weight
  kg/km

Tensile Strength
Long/Short Term
  N

Crush Resistance
Long/Short Term
  N/100mm

Bending Radius
Static/Dynamic
  mm

GYTZS-2~6Xn

2~6

1

4

9.7

135

600/1500

300/1000

10D/20D

GYTZS-8~12Xn

8~12

2

3

9.7

135

600/1500

300/1000

10D/20D

GYTZS -14~18Xn

14~18

3

2

9.7

135

600/1500

300/1000

10D/20D

GYTZS -20~24Xn

20~24

4

1

9.7

135

600/1500

300/1000

10D/20D

GYTZS -26~30Xn

26~30

5

0

9.7

135

600/1500

300/1000

10D/20D

GYTZS -32~36Xn

32~36

6

0

10.2

147

1000/3000

300/1000

10D/20D

GYTZS -38~48Xn

38~48

4

1

11.2

167

1000/3000

300/1000

10D/20D

GYTZS -50~60Xn

50~60

5

0

11.2

167

1000/3000

300/1000

10D/20D

GYTZS -62~72Xn

62~72

6

0

12.2

189

1000/3000

300/1000

10D/20D

GYTZS -74~84Xn

74~84

7

1

13.8

231

1000/3000

300/1000

10D/20D

GYTZS -86~96Xn

86~96

8

0

13.8

231

1000/3000

300/1000

10D/20D

GYTZS -98~108Xn

98~108

9

1

15.2

271

1000/3000

300/1000

10D/20D

GYTZS -110~120Xn

110~120

10

0

15.2

271

1000/3000

300/1000

10D/20D

GYTZS -122~132Xn

122~132

11

1

17.1

327

1000/3000

300/1000

10D/20D

GYTZS -134~144Xn

134~144

12

0

17.1

327

1000/3000

300/1000

10D/20D

 Note：Storage/Operating Temperature: -40℃ to +70℃

Note：

a. Suffix Xn denotes fiber type.

b. The colour arrangements of fiber and tube are specified in the colour identification table.

c. The nominal value of the flame-retardant sheath thickness is 1.8mm.
