Stranded Loose Tube Mining Flame-retardant Cable（MGTS）

Details:

Stranded Loose Tube Mining

Flame-retardant Cable（MGTS）

3-2 （MGTS） 副本.jpg

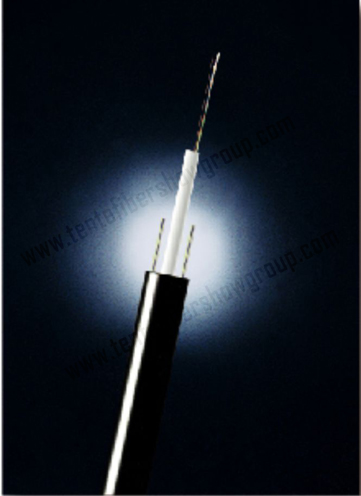

Description

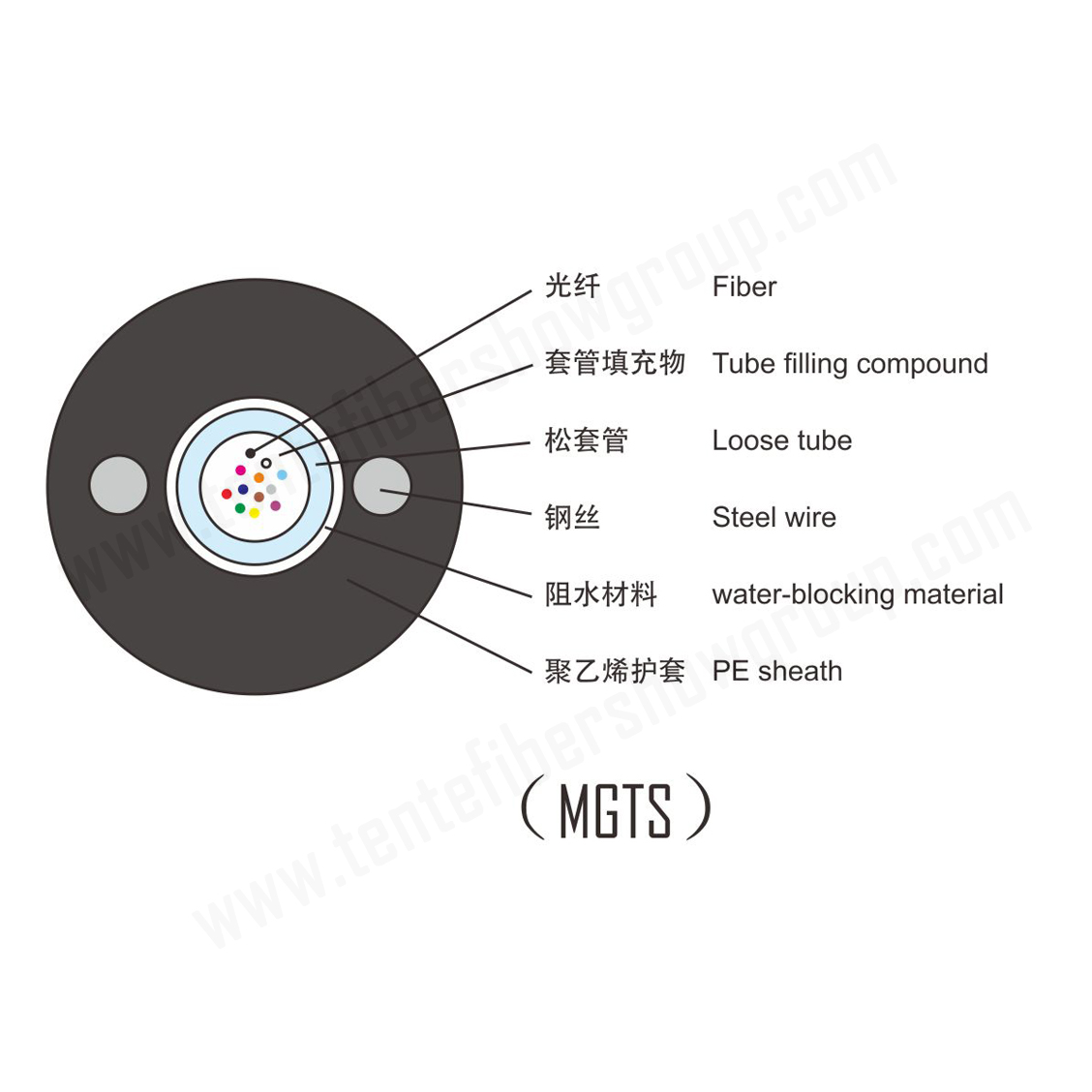

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.



Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Two parallel steel wires ensure tensile strength

PE sheath protects cable from ultraviolet radiation

Small diameter, light weight and friendly installation

Long delivery length



Standards

GYXY cable complies with Standard YD/T 769-2003.

Application: Aerial



Optical Characteristics



G.652

G.655

50/125 µm

62.5/125 µm

Attenuation（+20℃）

@ 850 nm



≤ 3.0 dB/km

≤ 3.0 dB/km

@1300 nm



≤ 1.0 dB/km

≤ 1.0 dB/km

@1310 nm

≤ 0.36 dB/km

≤ 0.40 dB/km



@1550 nm

≤ 0.22 dB/km

≤ 0.23 dB/km



Bandwidth（Class A）

@ 850 nm



≥ 500 MHz·km

≥ 200 MHz·km

@1300 nm



≥ 1000 MHz·km

≥ 600 MHz·km

Numerical Aperture



0.200 ± 0.015 NA

0.275 ± 0.015 NA

Cable Cut-off Wavelength lcc

≤ 1260 nm

≤ 1450 nm




Technical Parameters

Cable Type
(Increased by 2   fibers)

Fiber Count

Cable Weight
  kg/km

Tensile Strength
Long/Short Term
  N

Crush Resistance
Long/Short Term
  N/100mm

Bending Radius
Static/Dynamic
  mm

GYXY-2~12Xn

2~12

77

短期1500N，长期600N或1KM缆重中取最大值

300/1000

10D/20D

GYXY-2~12Xn

2~12

104

600N或1KM缆重中取最大值

1000/3000

10D/20D

Note：Storage/Operating Temperature: -40℃ to +70℃

Note：

a. Suffix Xn denotes fiber type.

b. The colour arrangements of fiber and tube are specified in the colour identification table.

c. The nominal value of the PE sheath minimum thickness outside of the strength member is 0.8mm.
