Unitube Mining Flame-retardant Cable（MGXTW）

Details:

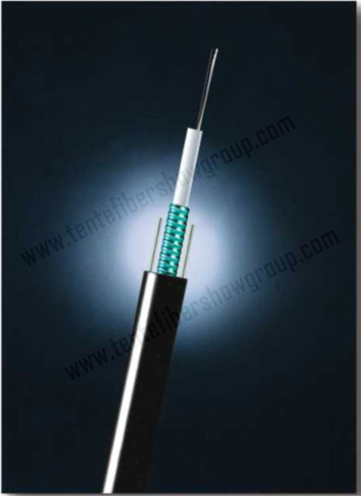

Unitube Mining Flame-retardant Cable（MGXTW）



5-2 （MGXTW） 副本.jpg

5-3 （MGXTW） 副本.jpg


Description

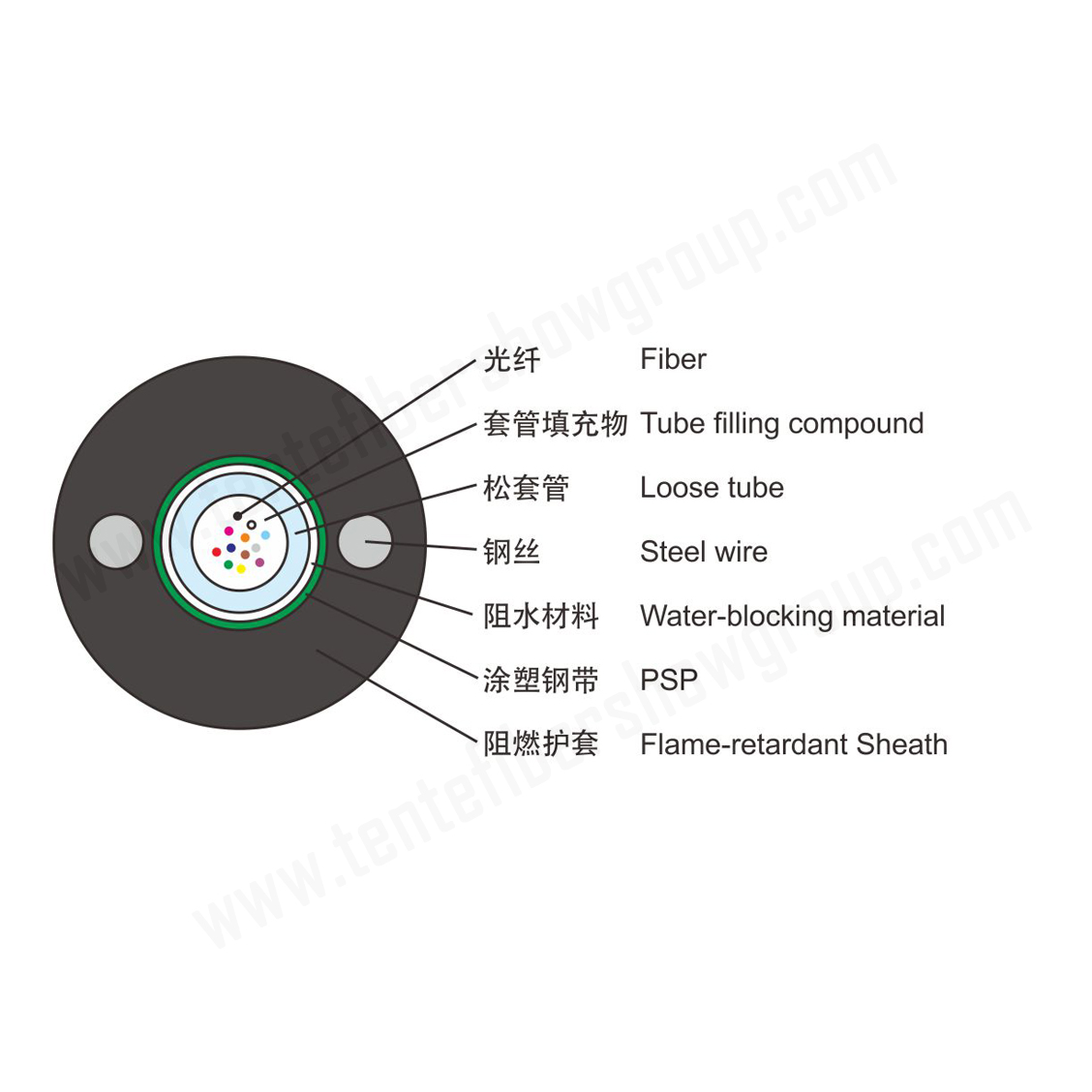

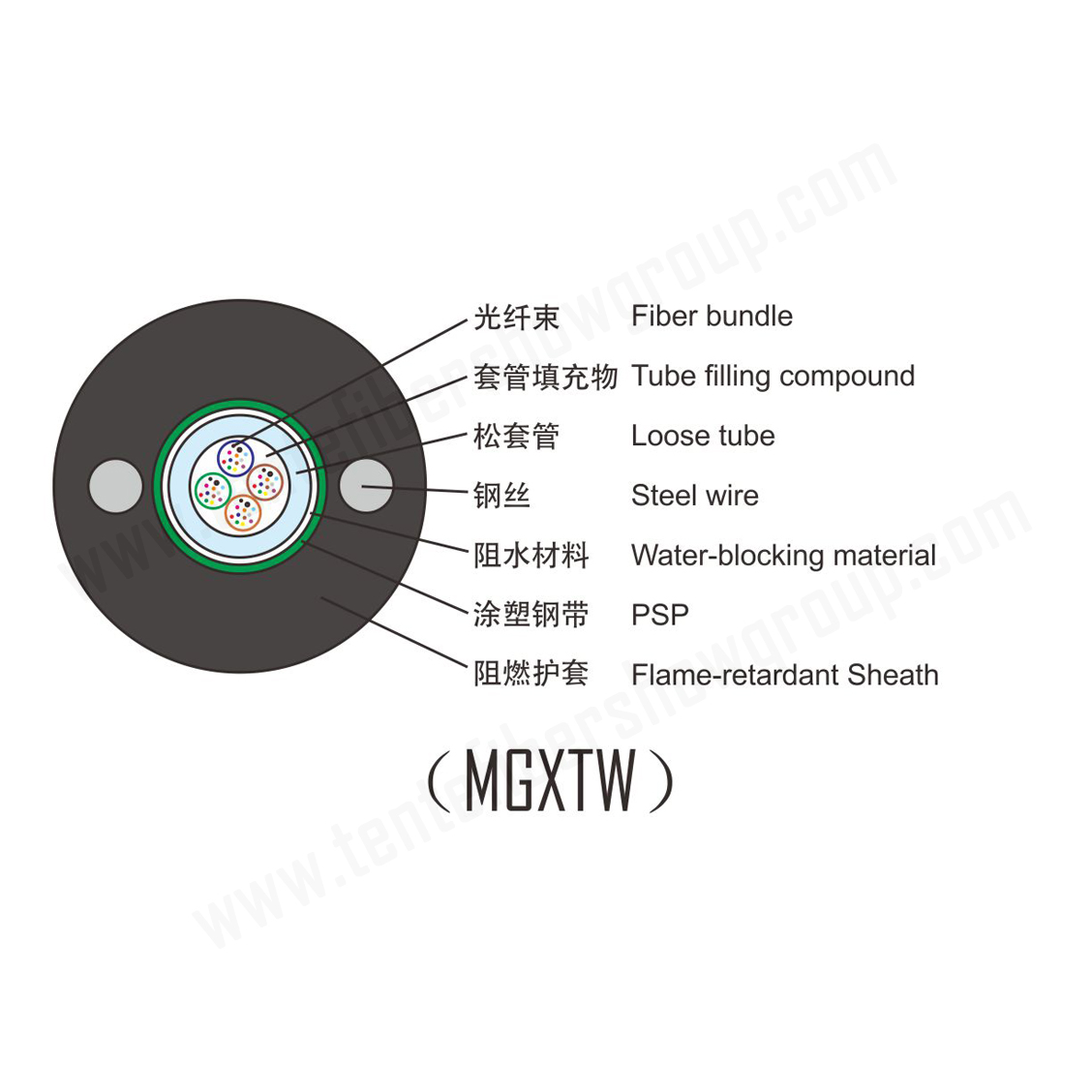

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a flame-retardant sheath.



Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Special sheath material ensures excellent flame-retardant performance

Crush resistance and flexibility

PSP enhancing moisture-proof

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Long delivery length



Standards

MGXTW cable complies with Standard YD/T 769-2003.

Application: Duct / Aerial



Optical Characteristics



G.652

G.655

50/125 µm

62.5/125 µm

Attenuation（+20℃）

@ 850 nm



≤ 3.0 dB/km

≤ 3.0 dB/km

@1300 nm



≤ 1.0 dB/km

≤ 1.0 dB/km

@1310 nm

≤ 0.36 dB/km

≤ 0.40 dB/km



@1550 nm

≤ 0.22 dB/km

≤ 0.23 dB/km



Bandwidth（Class A）

@ 850 nm



≥ 600 MHz·km

≥ 200 MHz·km

@1300 nm



≥ 1200 MHz·km

≥ 600 MHz·km

Numerical Aperture



0.200 ± 0.015 NA

0.275 ± 0.015 NA

Cable Cut-off Wavelength lcc

≤ 1260 nm

≤ 1450 nm





Technical Parameters

Cable Type
(Increased by 2 fibers)

Fiber Count

Cable Weight
kg/km

Tensile Strength
Long/Short Term
N

Crush Resistance
Long/Short Term
N/100mm

Bending Radius
Static/Dynamic
mm

MGXTW-2~12Xn

2~12

152

短期1500N，长期600N或1KM缆重中取最大值

300/1000

10D/20D

MGXTW-2~12Xn

2~12

172

1000/3000

10D/20D

MGXTW-14~24Xn

14~24

215

1000/3000

10D/20D

MGXTW-26~36Xn

26~36

272

1000/3000

10D/20D

MGXTW-38~48Xn

38~48

306

1000/3000

10D/20D



Note：Storage/Operating Temperature: -40℃ to +70℃

Note：

a. Suffix Xn denotes fiber type .

b. The colour arrangements of fiber and tube are specified in the colour identification table.

c. The nominal value of the flame-retardant PE sheath minimum thickness outside of the strength member is 1.0mm.

d. The steel tape is not corrugated in the cable with 12 fibers below. If the corrugated steel tape is requested, it should be specified in contract.
