Unitube Non-metallic Micro Cable(JET)
Description

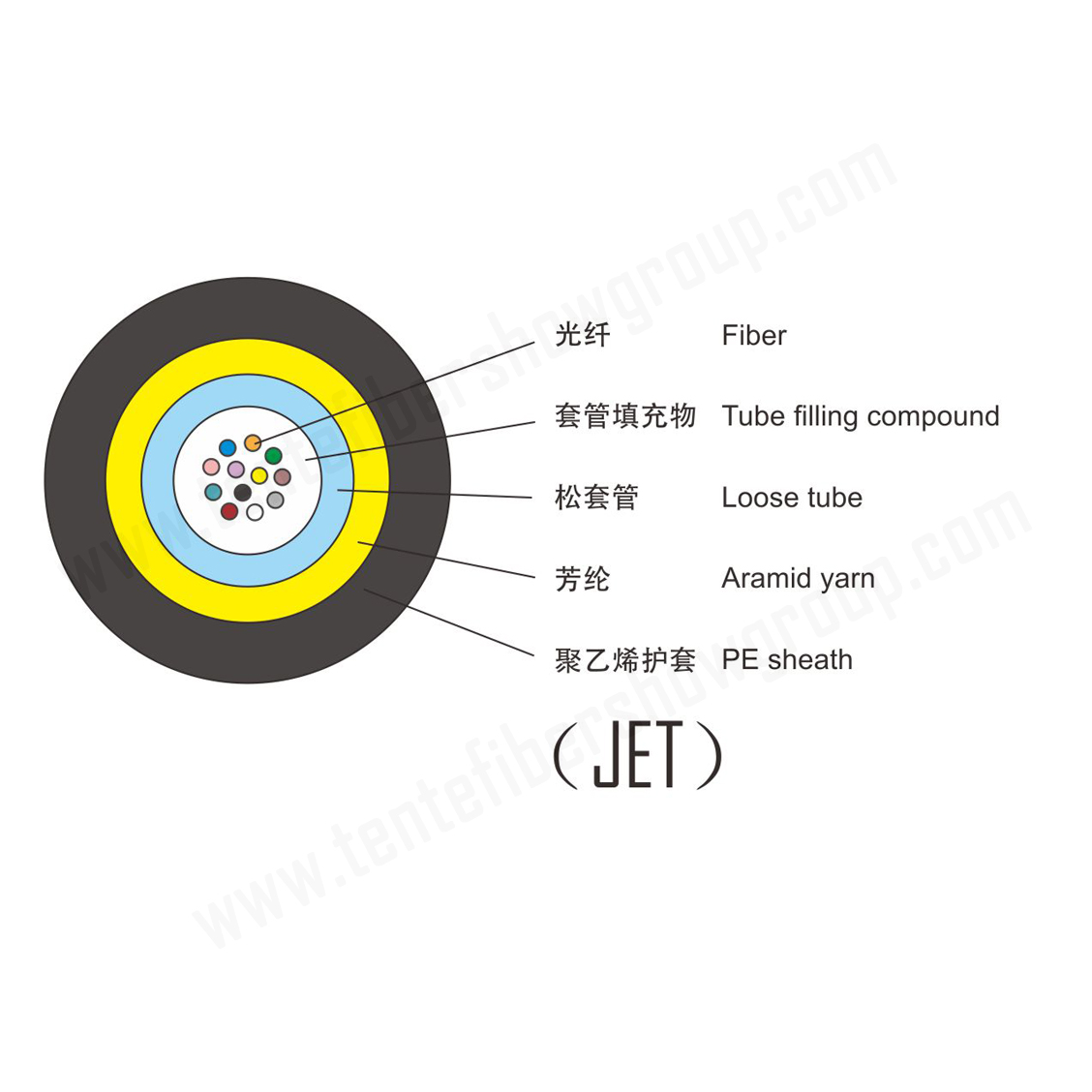

The fibers , 250um, either of single-mode or multimode type ,are positioned in a loose tube made of a high modulus plastic . The tubes are filled with a water-resistant filling compound . A layer of aramid yarn is applied around the cable core as additional strength member . Then , the cable is completed with a black or color HDPE sheath .
Characteristics
Non-mental design can prevent the cable from radio interference and magnetic wave interference
Specially designed compact structure is good at preventing loose tubes from shrinking
Aramid yarn ensures good performance of tensile strength
Loose tube filling compound ensure good moisture resistance performance
Good Flexibility
High dense fiber packed ,small diameter and light weight ;it 's the better option for blowing installation process
Applications
Adopted to backbone network, access network and fiber to the home
Optical Characteristics
G.652 | G655 | 50/125 um | 62.5/125um | ||
Attenuation(+20℃) | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth(Class A) | @850nm | ≥500 MHz.km | ≥200 MHz.km | ||
@1300nm | ≥1000 MHz.km | ≥600 MHz.km | |||
(Numerical Aperture) | 0.200±0.015NA | 0.275±0.015NA | |||
cable cut-off Wavelength λcc | ≤1260nm | ≤1450nm |
Technical Parameters
Cable Type | Cable count | cable diameter mm | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
GCYXTY-2-12Xn | 2-12 | 4.2±0.3 | 12 | 60/150 | 300/1000 | 10D/20D |
GCYXTY-14-24Xn | 14-24 | 4.6±0.3 | 15 | 60/150 | 300/1000 | 10D/20D |
GCYXTY-26-36Xn | 26-36 | 5.1±0.3 | 18 | 60/150 | 300/1000 | 10D/20D |
GCYXTY-38-48Xn | 38-48 | 5.6±0.3 | 22 | 60/150 | 300/1000 | 10D/20D |
Storage/Operating Temperature : -40℃ to +70℃
