Description:

All dielectric Self-supporting Aerial Cable（ADSS）

Details:

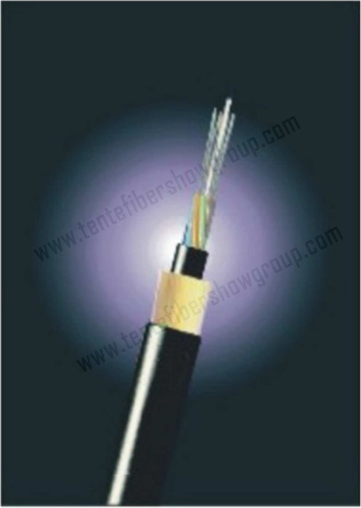

All dielectric Self-supporting Aerial Cable（ADSS）


1-2 （ADSS）中英文版7.jpg

Description

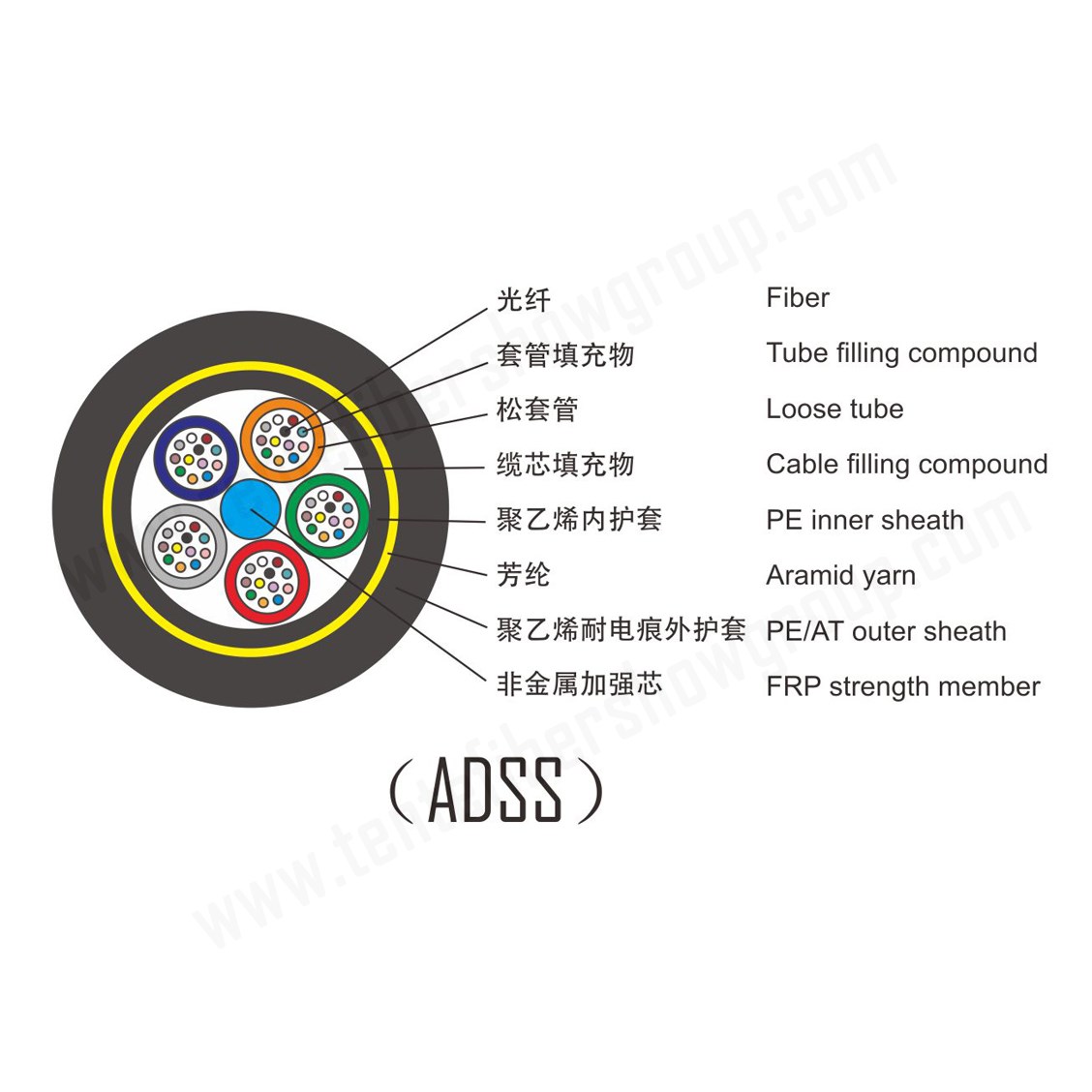

ADSS cable is loose tube stranded . Fibers, 250um , are positioned into a loose tube made of high modulus plastics .The tubes are filled with a water-resistant filling compound .The tubes (and fillers ) are stranded around a FRP(Fiber reinforced plastic) as a non-metallic central strength member into a compact circular cable core . After the cable is filled with compound . It is covered with thin PE (polyethylene) inner sheath .After stranded layer of aramid yarns are applied over the inner sheath as strength member . The cable is completed with PE and AT (anti-tracking ) outer sheath.



Characteristics

Can be installed without shutting off the power

Excellent AT performance , The maximum inductive at the operating point of AT sheath can reach 25 kv

Light weight and small diameter reducing the load caused by ice and the wind and the load on tower backprops .

Large span lengths and the largest span is over 1000m

Good performance of tensile strength and temperature

The design life span is over 30 years



Applications

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed . For overhead power lines under 110 kv , PE outer sheath is applied . For power lines equal to or over 110 kv , AT outer sheath is applied .The dedicate design of aramid quantity are stranding process can satisfy the demand of various spans .



Optical Characteristics



G.652

G655

50/125 um

62.5/125um

Attenuation(+20℃)

@850nm



≤3.0dB/km

≤3.3dB/km

@1300nm



≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.40dB/km



@1550nm

≤0.22dB/km

≤0.23dB/km



Bandwidth
  (Class A)

@850nm



≥500 MHz.km

≥200 MHz.km

@1300nm



≥1000 MHz.km

≥600 MHz.km

Numerical Aperture）



0.200±0.015NA

0.275±0.015NA

cable cut-off Wavelength λcc

≤1260nm

≤1450nm




Technical Parameters

Ref.

outer

diameter mm

Ref.weight

kg/km

Rec.

Daily

max.
Working

Tension
   kN

max

allowable
working

tension

kN

Break

Strength

Kn

strength

member

CSA mm²

Mudulus

lasticity

Kn/mm²

Heat

expansion

cofficient

x10-6/k

Suitable

Span  （m）
（NESC standard .m）



PE sheath

AT

sheath

A

B

C

D



12.5

125

136

1.5

4

10

4.6

7.8

1.8

160

100

140

100


13

132

142

2.25

6

15

7.6

8.3

1.5

230

150

200

150


13.3

137

148

3

8

20

10.35

9.45

1.3

300

200

290

200


13.6

145

156

3.6

10

24

10.8

10.8

1.2

370

250

350

250


13.8

147

159

4.5

12

30

14.3

11.8

1

420

280

400

280


14.5

164

177

5.4

15

36

18.4

13.6

0.9

480

320

460

320


14.9

171

185

6.75

16

45

22

16.4

0.6

570

380

550

380


15.1

179

193

7.95

22

53

26.4

18

0.3

670

460

650

460


15.5

190

204

9

26

60

32.2

19.1

0.1

750

530

750

510


15.6

194

208

10.5

28

70

33

19.6

0.1

800

560

800

560


16.3

211

226

12.75

34

85

40

20.1

0.1

880

650

880

650


16.8

226

242

15.45

41

103

48

24

-0.4

1000

750

1000

760


17.2

236

253

16.2

45

108

51

25.1

-0.5

1100

800

1100

830


17.9

249

266

18

50

120

58.8

26.1

-0.8

1180

850

1180

900



Note :Storage/Operating Temperature : -40℃ to +70℃

Note :

a. Only a part of ADSS cables are listed in the table .

b. Specifications in the table are got on condition that there is no height difference and the installation sag is 1%.

c. Fiber count is 2 to 60 ,the identifications of fibers are complies with the national standard .

d. Fibers, either for single-mode and multimode ,can be used in the cable on request .

e. Specially designed cable structure is available on request
