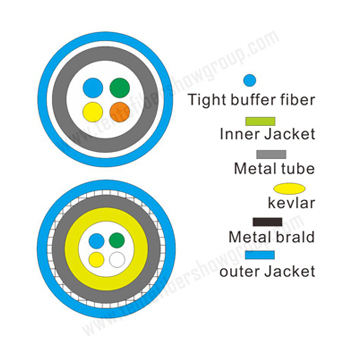

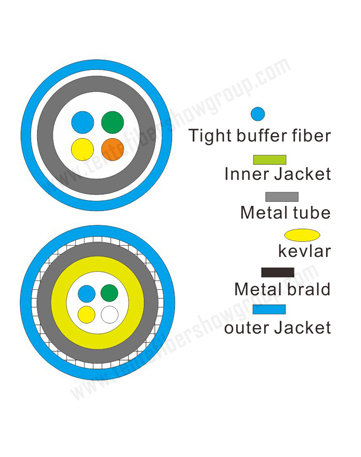

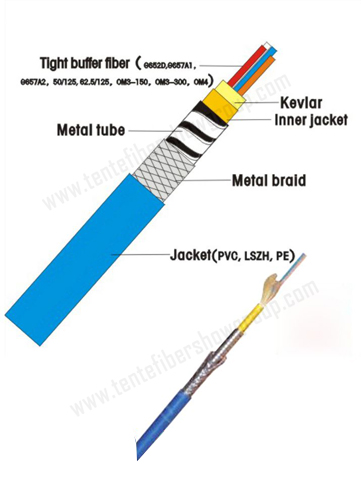

Armored Cable > TF-FO-04
Products Description
Features:
1.Good mechanical property and environment property
2.Flame resistant performance
3.Soft, agility, convenience for connection
4.Satisfy various request of markets and customers
Applications:
1.Infrastructure cabling, especially on the extremely adverse environmental condition for construction;
2.Ideal for use in optical device, equipment;
3.Pig tails and Patch cord;
Specifications:
Item | Units | Single Mode | Multimode | |
Core/Mode
| μm | 9.2±0.4μm@1310nm | 50±2.5μm | 62.5±2.5μm |
Diameter | 10.4±0.8μm@1550nm | |||
Cladding Diameter | μm | 125±1μm | 125±1μm | 125±1μm |
Max. Attenuation | dB/km | 0.4dB/km@1310nm | 3.5dB/km@850nm | 3.5dB/km@850nm |
0.3dB/km@1550nm | 1.5dB/km@1300nm | 1.5dB/km@1300nm | ||
Operating temperature | ℃ | -40℃~+85℃ | ||
Outer diameter | mm | 6.4±0.10mm | ||
Net weight | kg/km | 70 | ||
Allowable bending radius | (mm) | 65 | ||
Allowable tensile | (N) | 800 |
