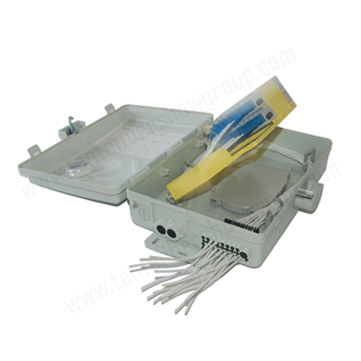

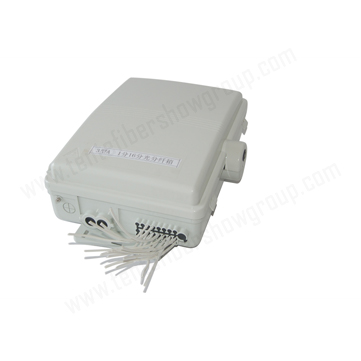

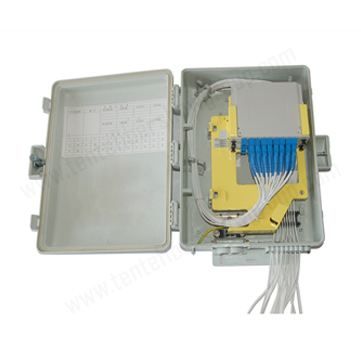

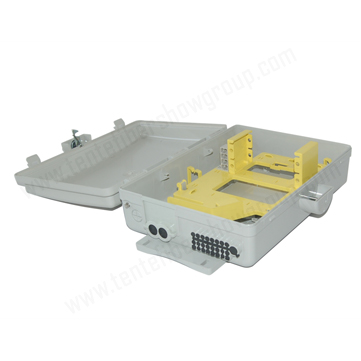

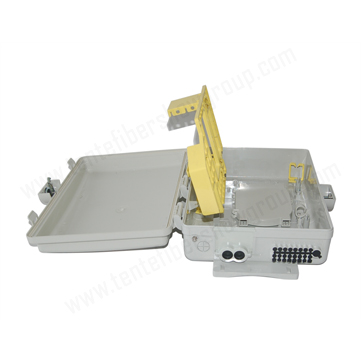

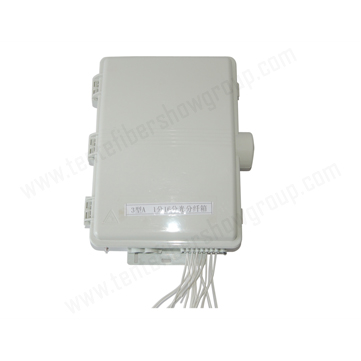

Fiber Optic Splitter Box

TT-YH-3 Type A 1:16(InstertType)

Performance

1.Fire-retardant, waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -40 °C - +60 °C natural environment.

4.Good sealing performance

5.IP65

Material: PC ( outdoor/indoor use)

Size: Length 325mm* Width 235mm* Height 110mm

Maximum fiber capacity:1:16 cores

Adaptors: SC

Cable: Drop cable, outdoor cable, standard indoor cable

Installation method: wall mounted, pole mounted.

Sealing method: with keys

Number of the tray:1 pcs , can open to 120°

Tray capacity: 12 cores

Packing: 0.12m³/8pcs

 Weight: 1.9kg
