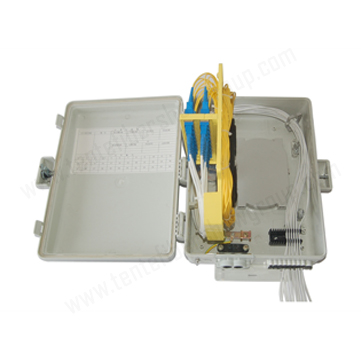

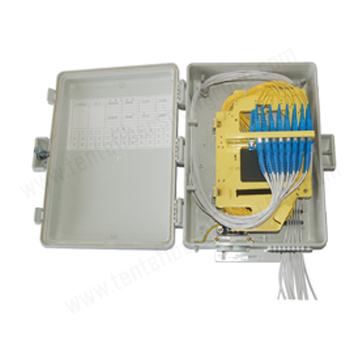

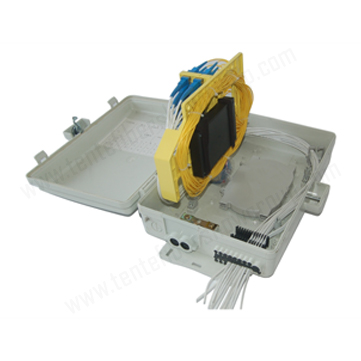

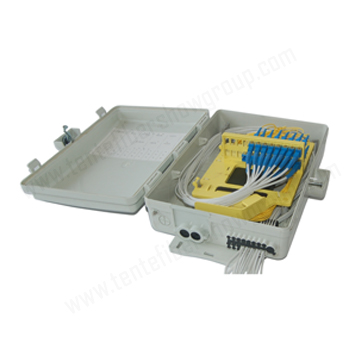

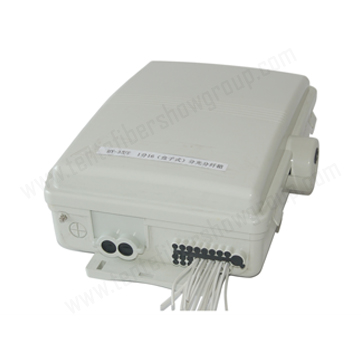

Fiber Optic Splitter Box

TT-YH-3 TypeE 1:16(cassette type)

Performance

1.Fire-retardant, waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -40 °C - +60 °C natural environment.

4.Good sealing performance

5.IP65

Material: PC ( outdoor/indoor use)

Size: Length 325mm* Width 235mm* Height 110mm

Maximum fiber capacity:1：16 cores

Adaptors:simplex SC

Splitter:1piece,1:16 cassette Type

Cable:Drop cable, outdoor cable, standard indoor cable

Installation method:wall mounted,pole mounted.

Sealing method: with keys

Number of the tray:1 pcs, can open to 120°

Tray capacity: 12 cores

Packing: 0.12m³/8pcs

Weight: 1.9kg
