Bare Adapter

Product Overview

*This Bare Fiber Adaptor is for temporarily connecting bare fiber with all standard connectors.

*The design provides a simple and easy method to quickly interconnect any standard fiber connector to testing bare fiber.

*Just stripe off a bit of buffer, clean the glass fiber and insert it in to the ferrule while depressing the button.

*Fiber is held mechanically and removable.

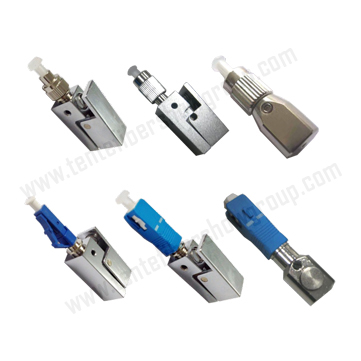

Bare adapter can be divided in two types

1: SC bare adapter

  1): round type

  2): square type

2：FC bare adapter

  1): round type

  2): square type

3：LC bare adapter

  1): square type

4：ST bare adapter

  1): square type

Application

* CATV; FTTx+LAN

* Telecommunication networks

* Data networks

Features

* Low insertion loss

* High precision alignment

* Comply with various connectors

* Compact design

Specification

* Ferrule I.D.:0.1255~0.1260,

* Durability:at least 1000 matings

* Operating Temperature(degree):

-40~+85
