Description:

Hybrid Adaptor

Details:

Hybrid Adaptor

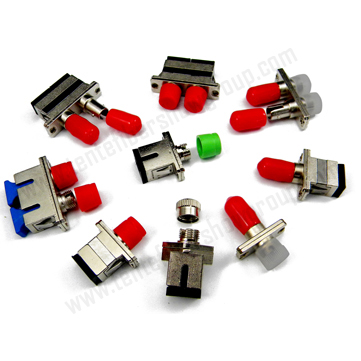

30 转换器 副本.jpg



Application

* Telecommunication

* CATV

* LAN & WAN

* Network

* Broadband



Features

* Single mode and Multimode

* Zirconia sleeves or Phosphor bronze sleeves

* NTT standard compatible and Bellcore GR-910-CORE

* All parts compliant with ROHS



Product parameters



Product

Hybrid Adaptor

Mode

S.M(Zroz)

M.M(P.B)

Insertion Loss

≤0.2dB

≤0.3dB

Return Loss

≥45dB

-- --

Mating Durability(500times)

Additional Loss≤0.1dB, Return Loss Variability<5dB

Temperature Stability(-40℃～85℃)

Additional Loss≤0.2dB,Return Loss Variability<5dB

Operating Temperature

-40℃～+85℃

Storage Temperature

-40℃～+85℃

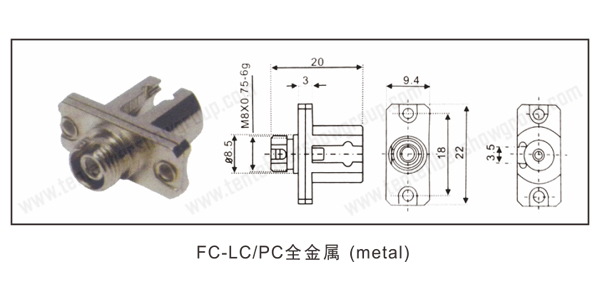

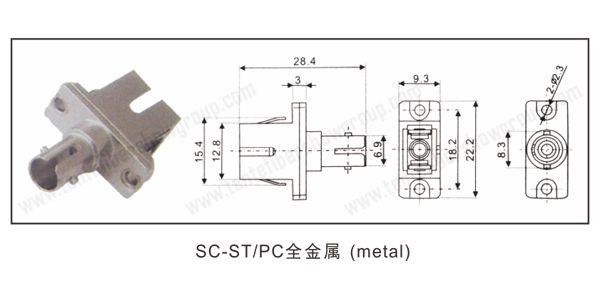

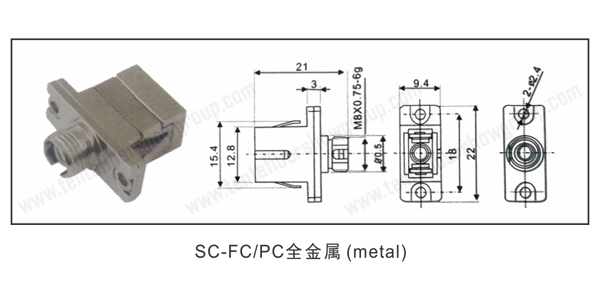

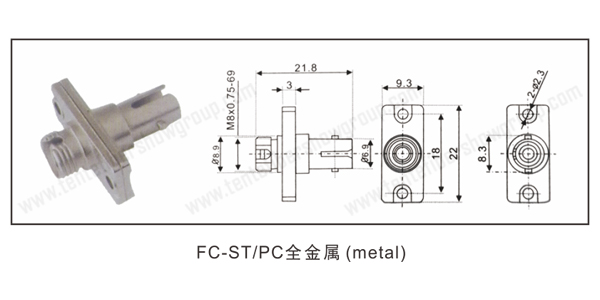

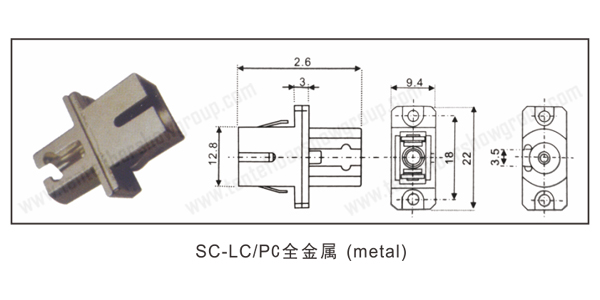

Appearance & Dimension
