Male-Famale Attenuator

Test data

Continuous strike 4000 times:  insertion change ≤0.20dB  Reflect≥45dB

Decline                 insertion change ≤0.20dB  reflect≥45dB

Bend                   insertion change ≤0.20dB  reflect≥45dB

Torsion                 insertion change ≤0.20dB  reflect≥45dB

Wear of insertion          insertion change ≤0.20dB  reflect≥45dB

Pull                   insertion change ≤0.20dB  reflect≥45dB

Resistance               200-400gf

Vibrancy                insertion change ≤0.20dB  reflect≥45dB

Spray salt water           insertion change ≤0.20dB  reflect≥45dB

Heat strike              insertion change ≤0.20dB  reflect≥45dB

Operated temperature        -20℃--+70℃

Deposited temperature       -40℃--+70℃

Performance Indexes

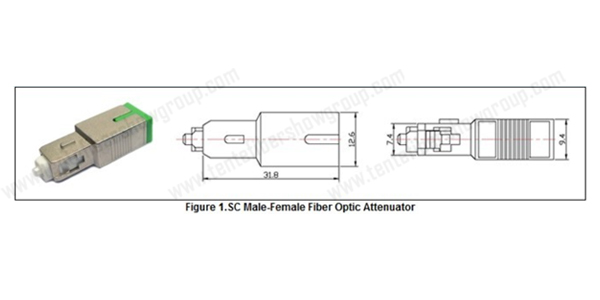

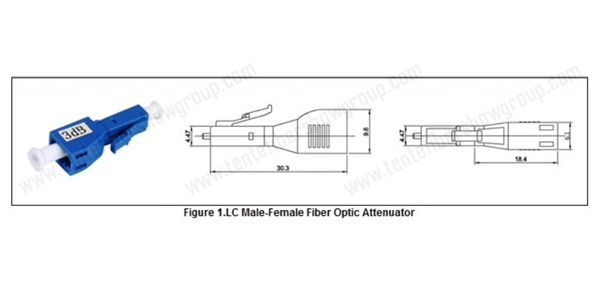

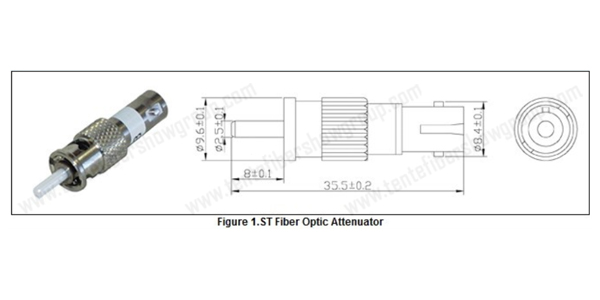

Appearance & Dimension
