FBT Splitter

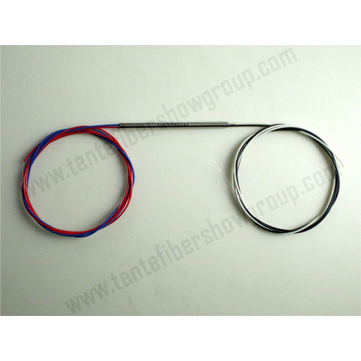

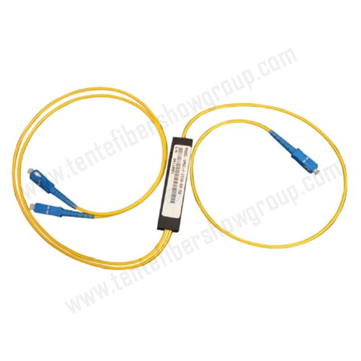

1X2 FBT splitter
|
Features
Low loss
Low polarization dependence
Environmentally stable
Applications
Optic communication system
LAN
CATV
Fiber optic sensor
Test instrument
Description
Single mode FBT splitter are used to split light with minimal loss from one to two fibers or to combine light from two fibers into one fiber. These components are excellent for duplex transmission on a single fiber, CATV systems or within fiber optic test sets.
Specifications
Grade | Grade "Premium" | ||||
Parameter | |||||
Operating Wavelength(nm) | 1310 or 1550, others on request | ||||
Bandwidth (nm) | ±20 | ||||
Excess Loss (dB) | ≤ 0.08 (0.05 typ.) | ||||
Coupling Ratio (%) | 50/50 | 40/60 | 30/70 | 20/80 | |
Typ. Insertion Loss (dB) | 3.05 | 4.1/2.3 | 5.3/1.6 | 7.1/1.0 | |
Max. Insertion Loss (dB) | 3.3 | 4.4/2.5 | 5.6/1.8 | 7.4/1.2 | |
Polarization Dependent Loss (dB) | ≤0.10 | ≤0.10 | ≤0.15/0.10 | ≤0.15/0.10 | |
Thermal Stability (dB /℃) | ≤ 0.002 over -40℃ to +85℃ | ||||
Directivity (dB) | 1×2 | ≥ 50, ≥ 60 on request | |||
2×2 | ≥ 65 |
Package Information

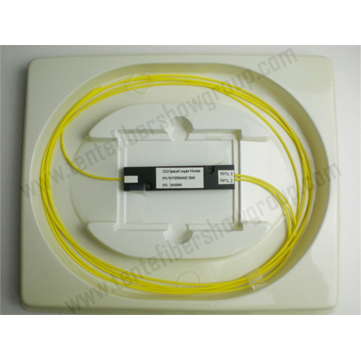

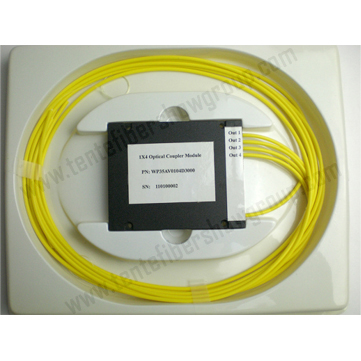

Configuration | 1×2 or 2×2 | ||
Lead length | 1 meter, others on request | ||
Lead Type | 0:250um bare fiber | 1:900um loose tube | 2:3mm loose cable (or 2mm) |
Package Dimensions (mm) | A:Ф3.0×40 | A: Ф3.0×54 | B: 90×16×9 |
B: 90×16× 9 | C: 106×79× 10 | ||
Operating Temperature (℃) | -40 to +85 | -20 to +70 | -20 to +70 |
