PLC Splitter

Description:

Details:

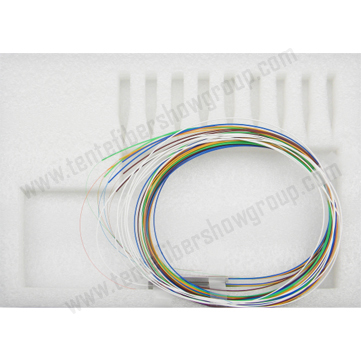

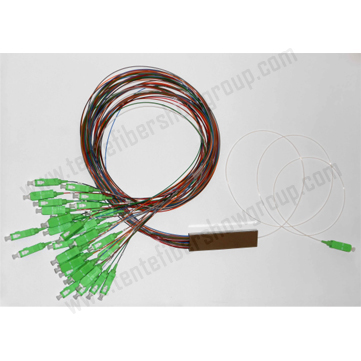

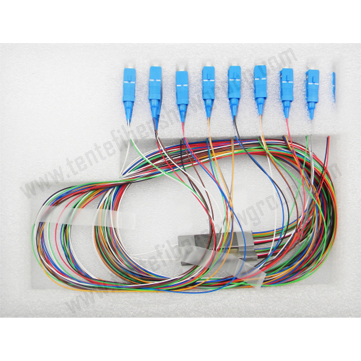

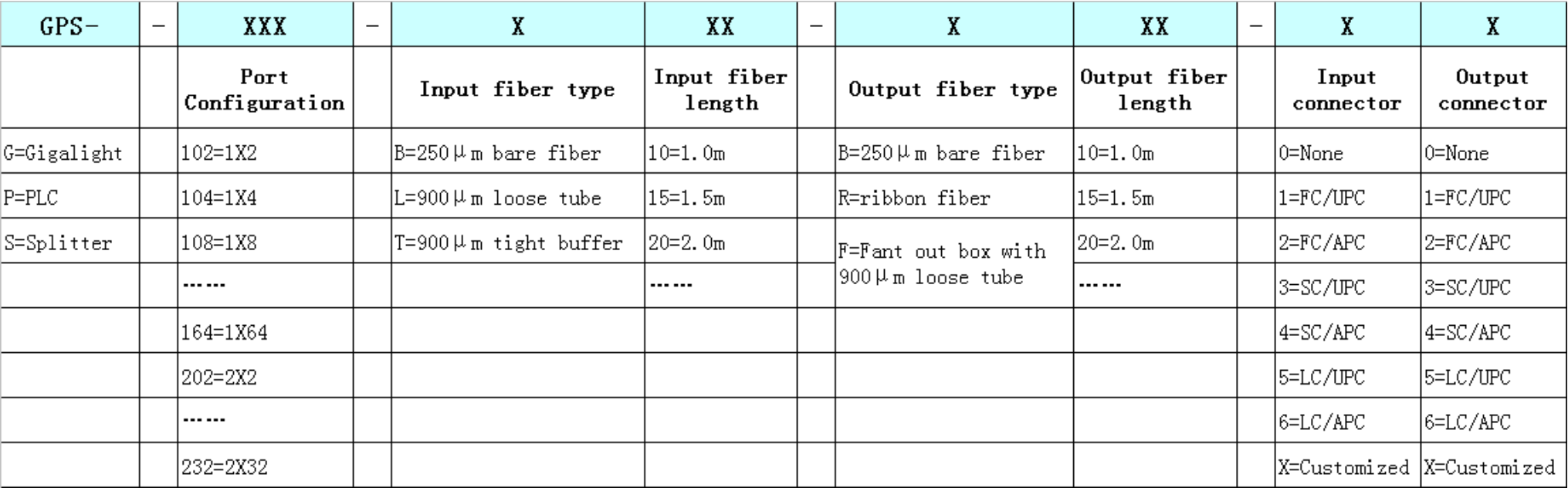

PLC Splitter

Mini Module PLC Splitter

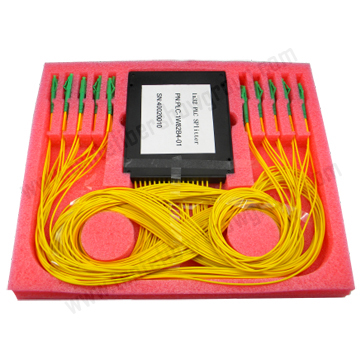

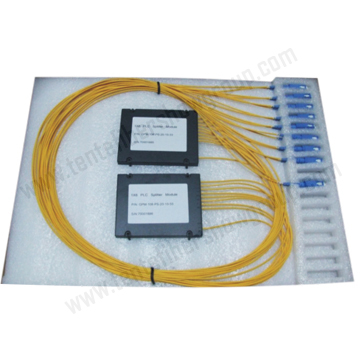

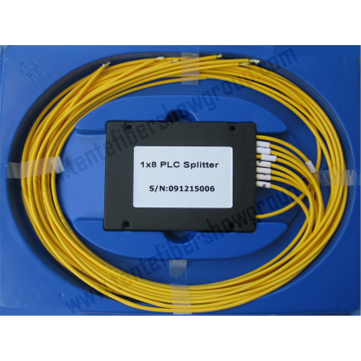

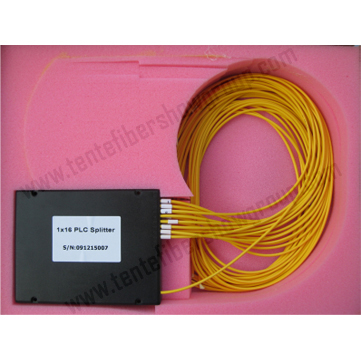

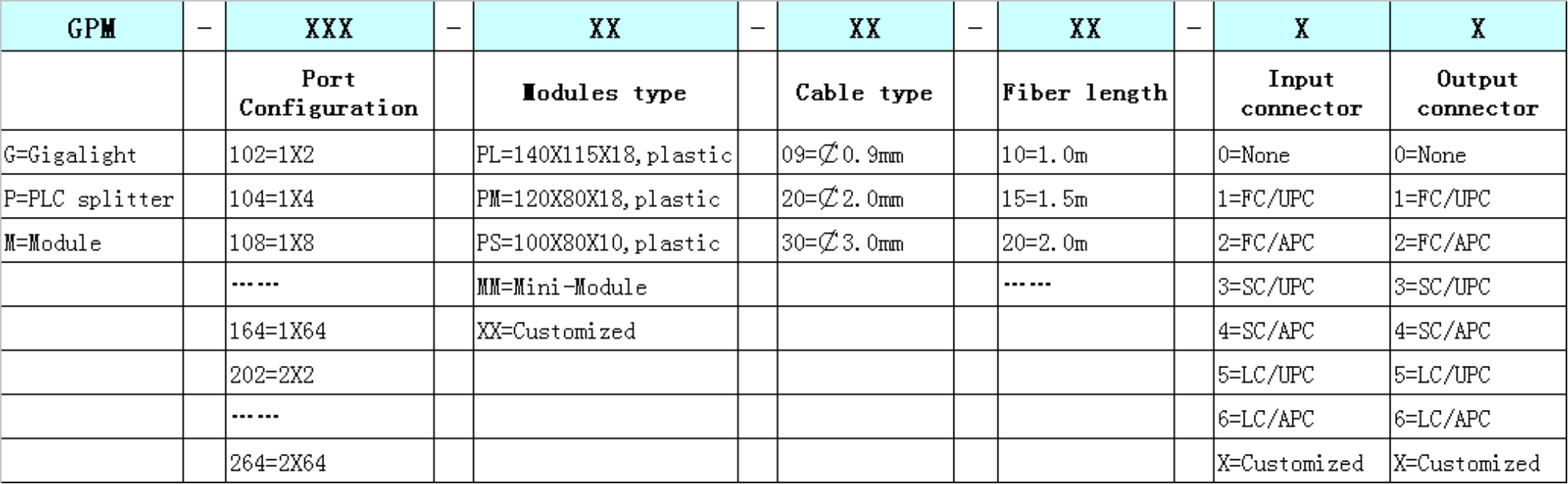

ABS Box Module PLC splitter

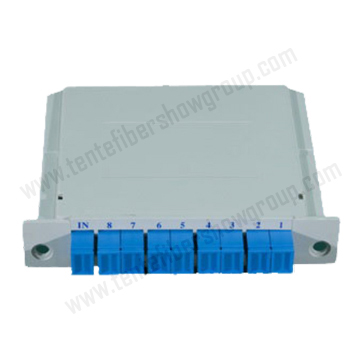

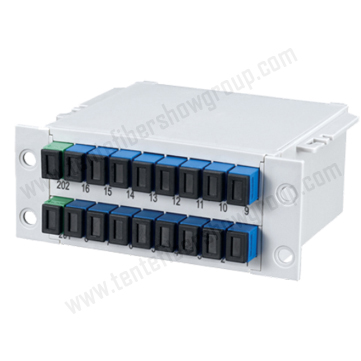

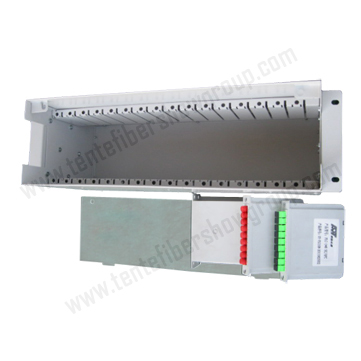

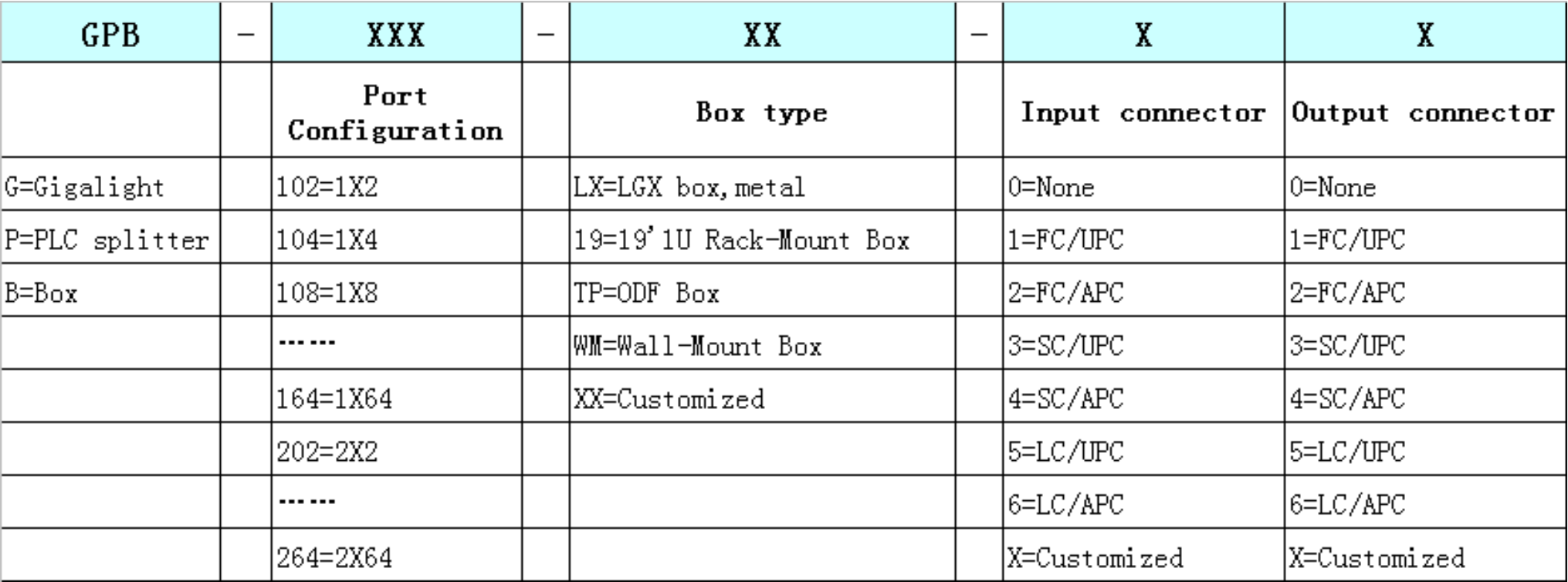

Cassette PLC Splitter

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Blueray provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Applications

FTTH Systems

PON Network

CATV Links

Communication Equipment

Features

Low Insertion Loss

High Isolation

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength

High Reliability and Stability

Compliance

GR-1209-CORE

GR-1221-CORE

YD/T-1272Q

Q/CT-2295

RoHS

Specifications

Table 1 1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength (nm)	1260～1650
Fiber Type	G652D or G657A1 or customer specified
Insertion Loss (dB)（P/S Grade）	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss (dB) （P/S Grade）	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85

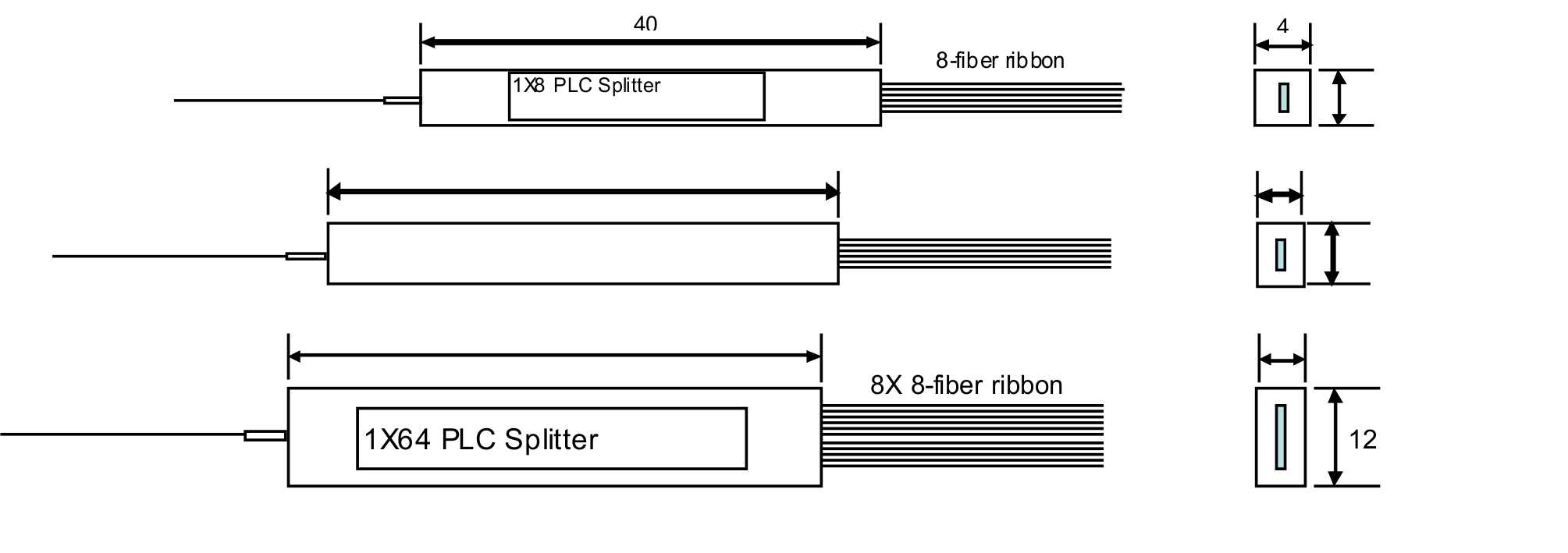

Device Dimension (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4	N/A

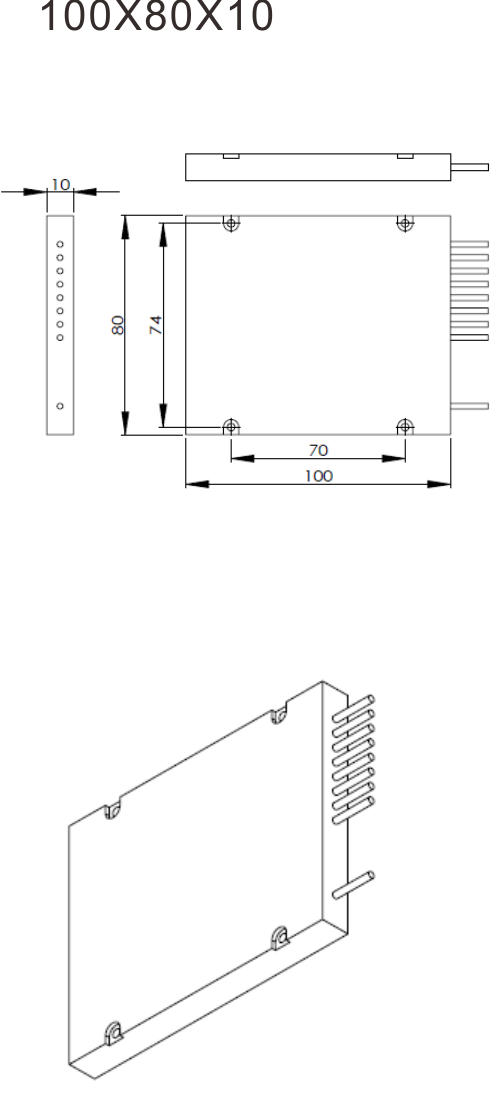

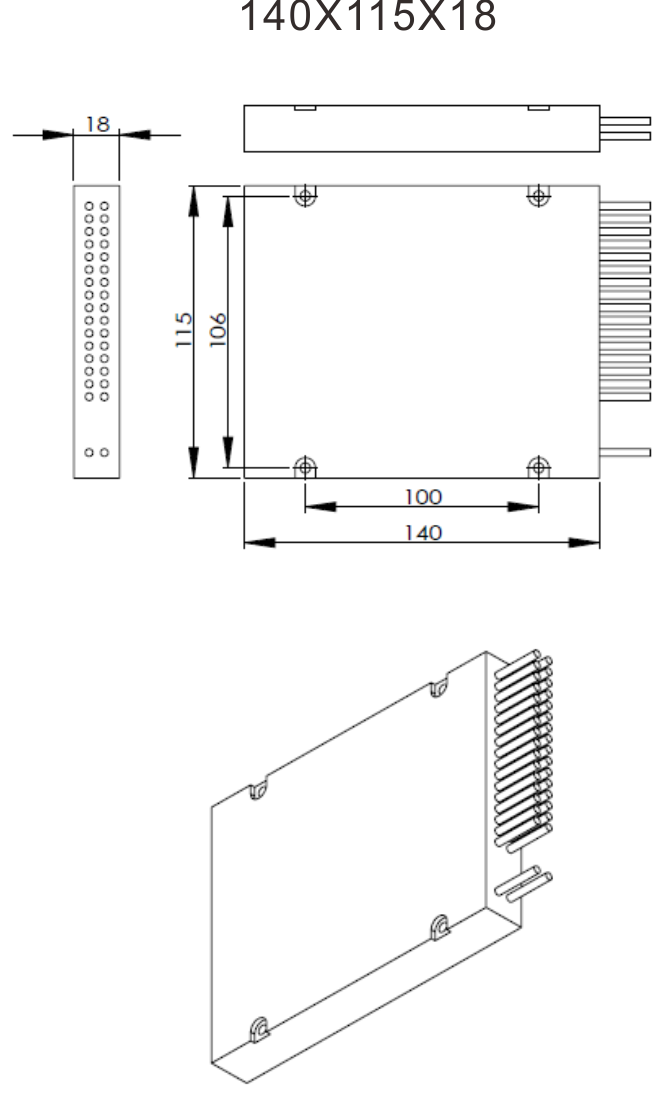

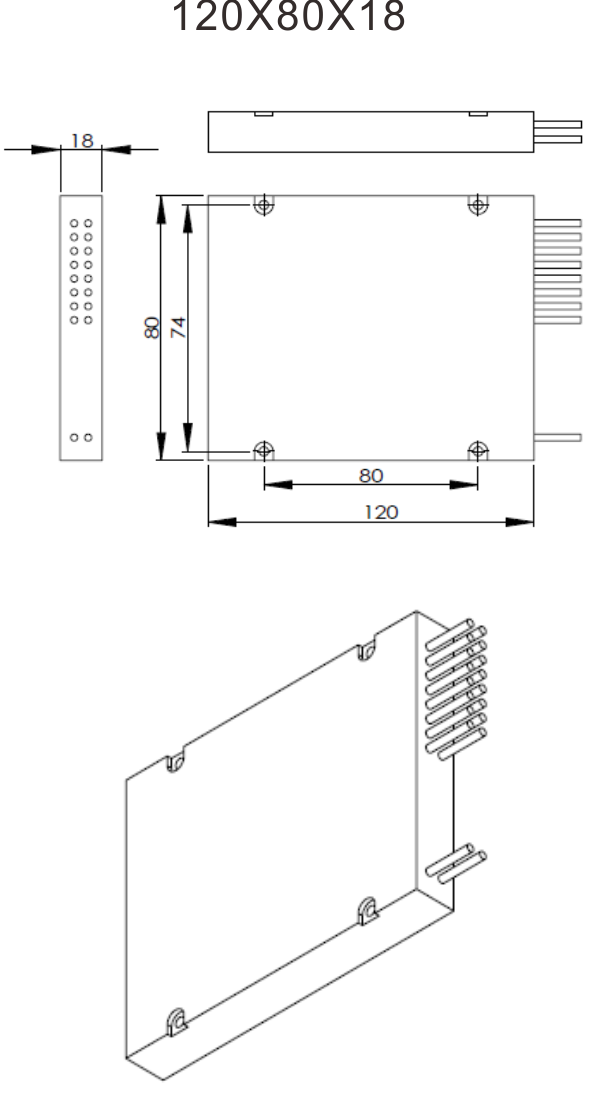

Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18	140×115×18

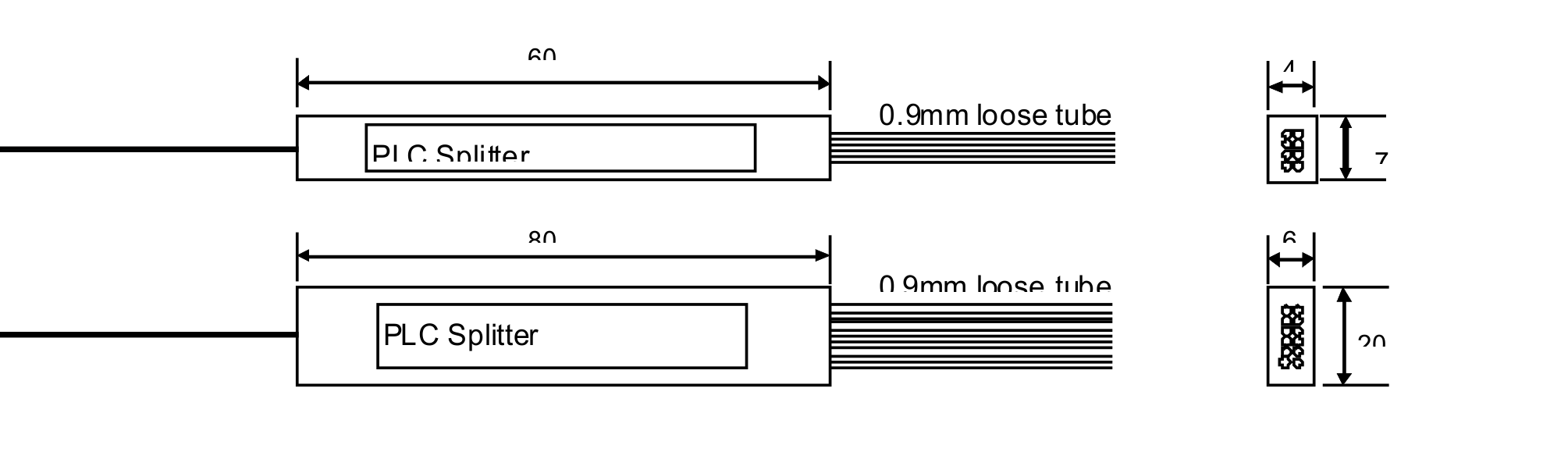

Mini-Module Dimension (mm)	50×7×4	50×7×4	50×7×4	60×12×4	80×20×6	100×40×6	N/A

Table 2 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64	2×128
Operating Wavelength (nm)	1260～1650
Fiber Type	G652D or G657A1 or customer specified
Insertion Loss (dB)（P/S Grade）	4	7.6	11	14.4	17.5	21	24.5
Loss Uniformity (dB)	0.6	1	1.2	1.5	1.8	2.2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.35	0.4	0.4
Return Loss (dB) （P/S Grade）	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.4	0.5	0.5	0.5	0.5	0.5
Temperature Stability (-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Device Dimension (mm)	40×4×4	50×4×4	50×4×4	50×7×4	60×7×4	N/A	N/A
Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18	140×115×18
Mini-Module Dimension (mm)	60×7×4	60×7×4	60×7×4	60×12×4	80×20×6	N/A	N/A
