Description:
FWDM Component
Details:
FWDM Component
Description
we is Filter Wavelength Division Multiplexer(FWDM) ,FWDM T1550 R1310&1490 can achieve 1550/1310&1490 two channel optical signal multiplexing and demultiplexing, Making single optical fiber transmission capacity multiplier, Widely used in optical fiber network upgrading etc.
Wavelink provides whole series of Module products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features
Low Insertion Loss,Low PDL
High channel isolation
Exceptional reliability and stability
Wide Operating Wavelength
Wide Operating Temperature
Applications
Access networks
Metro WDM Systems
Enterprise networks
Fiber optic instruments

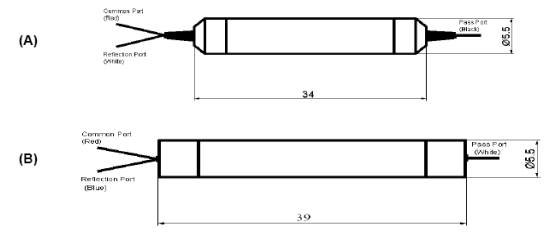

Dimensions Drawing (mm)
Specifications
Item | Unit | Parameters | Item | Unit | Parameters | ||||||
operating wavelength | nm | T13/R15 | T15/R13 | T13/R1415 | T14R1315 | T15R1314 | T1415R13 | T1314R15 | |||
Transmission Length | nm | 1310+/-40 | 1550+/-40 | 1310+/-40 | 1490+/-10 | 1550+/-10 | 1490+/-10 | 1310+/-40 | Reflection Isolation | db | ≥15 |
1550+/-10 | 1490+/-10 | PDL | db | ≤0.05 | |||||||
Reflection wavelength | nm | 1550+/-40 | 1310+/-40 | 1490+/-10 | 1310+/-40 | 1310+/-40 | 1310+/-40 | 1550+/-40 | Directivity | db | ≥50 |
1550+/-10 | 1550+/-10 | 1490+/-10 | Return loss | db | ≥45 | ||||||
Passband Ripple | db | ≤0.30 | Operating Temperature | ℃ | -5 to +70 | ||||||
Transmission IL | db | ≤0.80 (0.60Typ.) | Storage Temperature | ℃ | -40 to +85 | ||||||
Reflection IL | db | ≤0.60 (0.40Typ.) | Fiber Type | G657A or Customized | |||||||
Reflection Ripple | db | ≤0.20 | Package Dimension | mm | Φ5.5×34(A)/ 250um bare fiber | ||||||
Transmission Isolation | db | ≥30 | mm | Φ5.5×39(B)/900um loose tube | |||||||
- Previous:Athermal AWG DWDM Module
- Next:CWDM Component
