Description:

CWDM Component

Details:



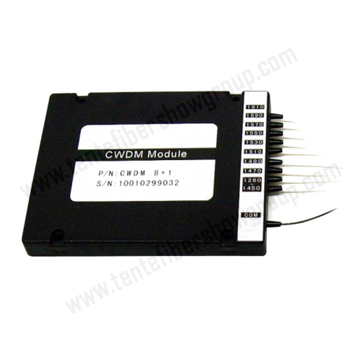

CWDM Component



42 CWDM波分复用产品 副本.jpg



Application

·* WDM System

·* MAN

·* CATV System



Features

* Low Insertion Loss

* Low PDL

* High Isolation

* Excellent Environment Reliability



Product Overview

CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-costm low power comsumption and small compact, it is widely used in metro aggregation and access layer to do transmission on a short time.



Performance

Type

CWDM

Parameters

Index

Channel No.

λ

2

3

4

5

6

7

8

9

Max insertion loss

dB

0.8

1

1.4

1.8

2.2

2.6

3

3.4

Center wavelength

nm

1310．1470．1490．1510．1530．1550．1570．1590．1610

Passband width

nm

±6.5

Passband flatness

dB

≤0.5

Adjacent channel isolation

dB

≥30

Non-adjacent channel isolation

dB

≥45

Wavelength thermal stability

nm/℃

<0.002

Insertion loss thermal stability

dB/℃

≤0.005

≤0.005

≤0.007

≤0.008

Return loss

dB

≥45

Polarization mode dispersion

ps

≤0.10

≤0.10

≤0.15

≤0.15

PDL

dB

≤0.10

≤0.15

≤0.20

≤0.25

Directivity

dB

≥50

Max power

mW

500

Operating temperature

℃

-10~+70

Storage temperature

℃

-40~+85

Dimension

mm

100×80×10.5

Remarks

1.16 channels WDM (wavelength from 1270nm-1610nm) can be ustomized
2. Rack-mounted customization is available.

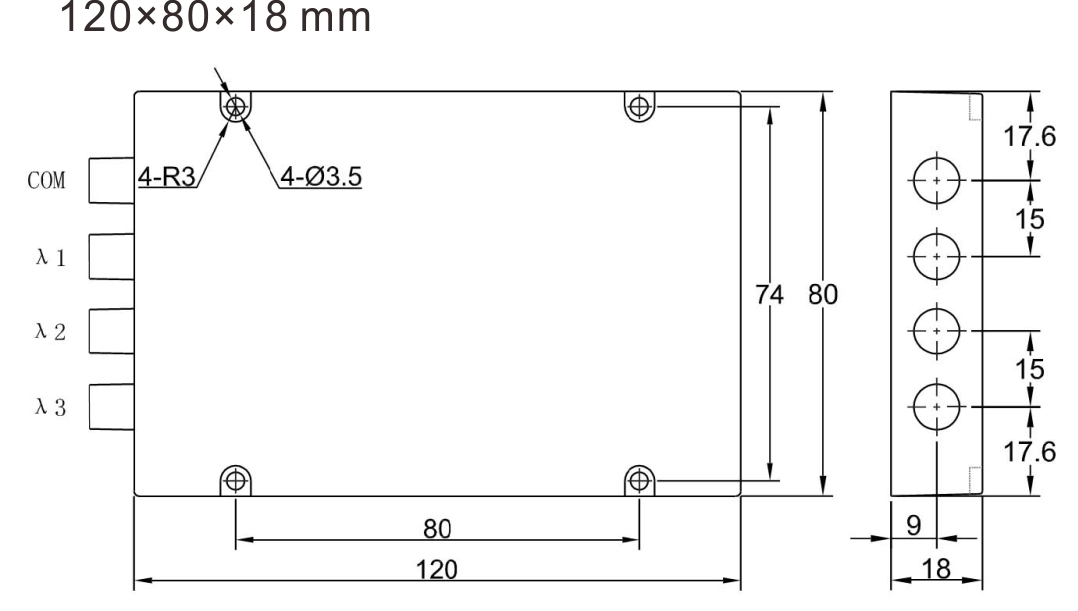

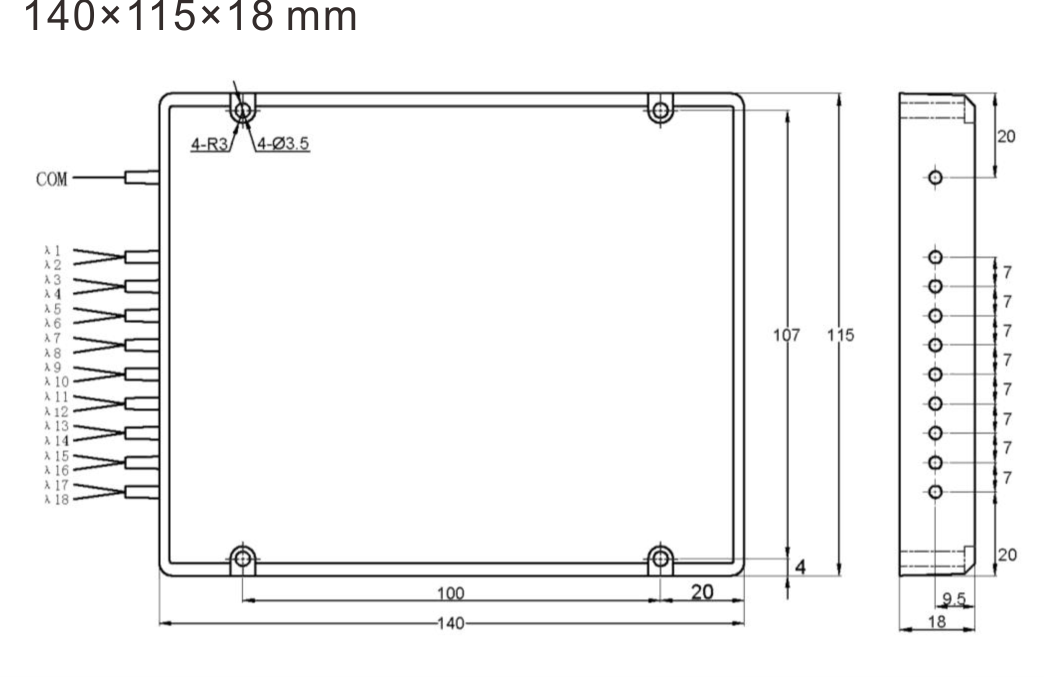

Dimension


43-1 CWDM波分复用产品.png

43-2 CWDM波分复用产品.png

43-3 CWDM波分复用产品.png












Rack-mounted Equipment


43-4 机架式CWDM设备 副本.jpg










Ordering Information



CWDM-A-B-C-D-E-F-G



A

B

C

D

E

F

G

1×N

Wavelength

Package spec

Fiber Type

Fiber Diameter

Fiber Length

Connector

N=1
N=2 …
N=16

1270 nm
1290 nm
1310 nm …
1570 nm
1590 nm
1610 nm

1: Φ5.5mm×34mm
2: Φ5.5mm×35.4mm
3:Φ90×20×10 mm
4:Φ100×80×10.5 mm

5:Φ120×80×18 mm

6:Φ140×115×18 mm
7: 1U

X: Others

9: 9/125 X:   Others

25:250um
90:900um
20:2.0mm
30: 3.0mm
X: Others

05:0.5m
10:1.0m
15:1.5m
X:Others

OO:None

FP:FC/PC

FA:FC/APC

SP:SC/PC

SA:SC/APC

STP:ST/PC

STA:ST/APC  LP:LC/PC

LA:LC/APC

X: Others
