TP-7100A Plus Insertion Loss and Return Loss Tester

Details:


TP-7100A Plus Insertion Loss and Return Loss Tester

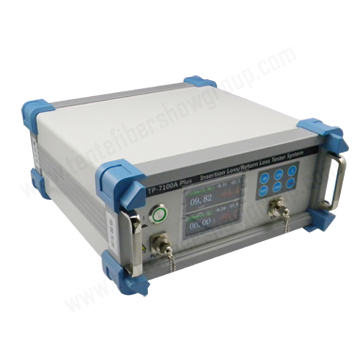

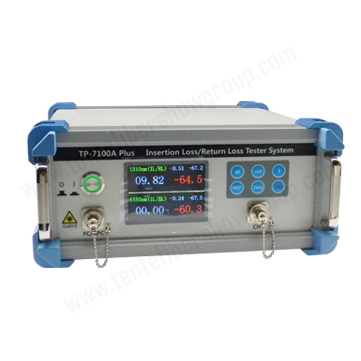

TP-7100A Plus 正面.jpg

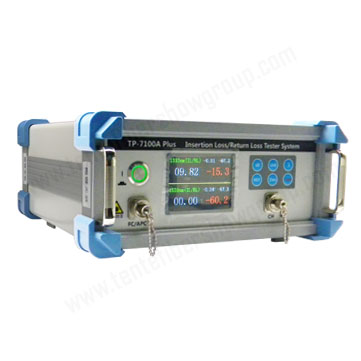

TP-7100A Plus.jpg

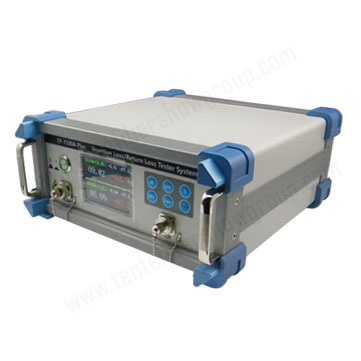

TP-7100A Plus 侧面.jpg







Descriptions

Insertion loss and return loss tester developed by which gathered years of experience in production of optical passive components ,optical communications instrumentation and testing experience .Fully draw on the advantages of the instrument at home and abroad, organized customers' demand, devote themselves to research and develop  out the precision optical instrument. Widely used in optical fiber communication system research, project maintenance, development and production, it's the ideal and essential test equipment by the majority of manufacturers, research institutions and operators.



Features

1. Compact appearance, practical, stability, reliability, simple operation

2. Super-accurate detection circuit of the weak signal, large dynamic range

3. Dual-channel colorful LED screen

The IL & RL of 1310/1550nm can be showed simultaneously.

5 . Special light source connector, easy to clean

 The whole set interface configuration



Specifications

Model

TPR-7100A Plus

Return Loss   Tester

Input connector

FC/PC, 9/125μm


Testing connector

FC/APC,9/125μm


Calibrated Wavelength(nm)

1310nm, 1550nm


Return Loss Measurement Range

0~ 75 dB


Uncertainty

45~55dB,±0.5dB;55~65dB,0.8dB


Measurement Accuracy

0.01dB

Insertion Loss   Tester

Standard Wavelength

850nm,1300nm,1310nm,1490nm,1550nm,1625nm


Optical Connector (Power Meter)

Inter changeable   FC/SC/ST/2.5mm Universal /1.25mm adaptor


Detector Type

InGaAs


Measurement Rang

-80~+10 dBm


Measurement Accuracy

0.01dB


Uncertainty

±3%@1550nm 23°C±3°C

Light Source

Operating Wavelength

1310,1550nm


Output Power

-1.5dBm


Stability

0.03dB@15min


Output interface

FC/APC

Power Supply

AC 90-260V.50-60Hz

Operation Temperature

-10°C ~+50°C

Storage Temperature

-20~ 70°C

Humidity

<95%RH

Dimensions

305*275*155mm

Weight

4.5kg
