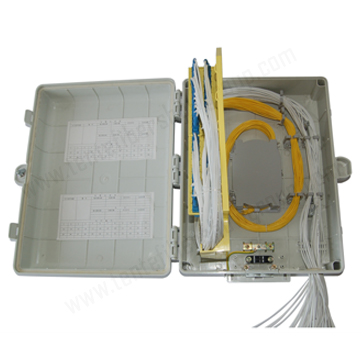

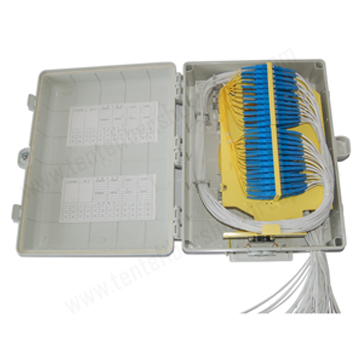

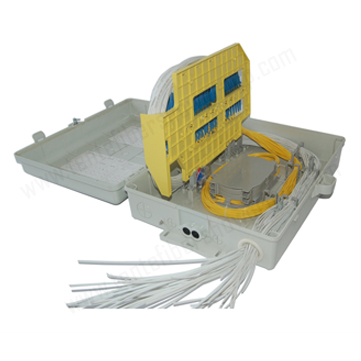

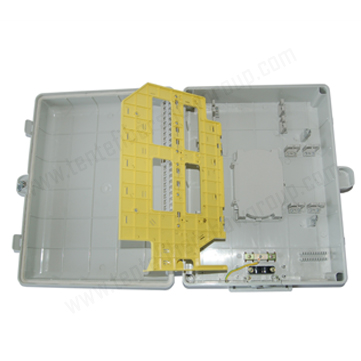

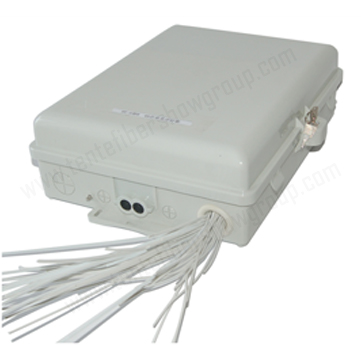

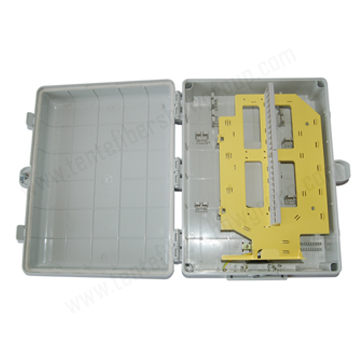

Fiber Optic Distribution Box

TT-YH-5 Type B 48 cores

Performance

1.Fire-retardant, waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -40 °C - +60 °C natural environment.

4.Good sealing performance

5.IP 65

Material: PC ( outdoor/indoor use)

Size: Length 420mm* Width 320mm* Height 125mm

Maximum fiber capacity: 48 cores

Adaptors: SC

Installation method:wall mounted,pole mounted.

Sealing method: with keys

Number of the tray: 1-4 pcs, can open to 120°

Packing: 0.0488m³/2pcs  Weight:1.9kg/piece
