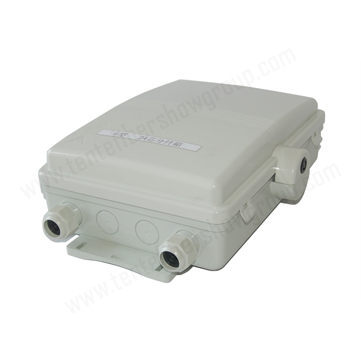

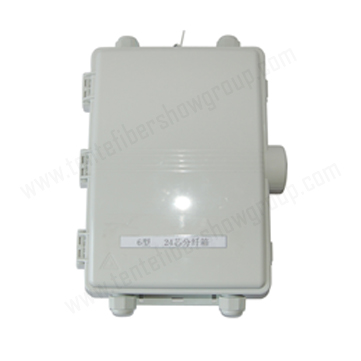

Fiber Optic Distribution Box

TT-YH-6 Type A 24 cores

Performance

1.Fire-retardant, waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -40 °C - +60 °C natural environment.

4.Good sealing performance

5.IP65

Material: PC ( outdoor/indoor use)

Size: Length 370mm* Width 270mm* Height 110mm

Maximum fiber capacity:?Max 24core fibers for pigtail fusion directly

Adaptors:Duplex SC adapters or simplex SC adapters

Cable:Drop cable, outdoor cable, standard indoor cable

Installation method:wall mounted,pole mounted.

Sealing method: with keys

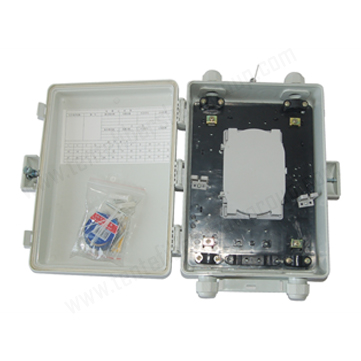

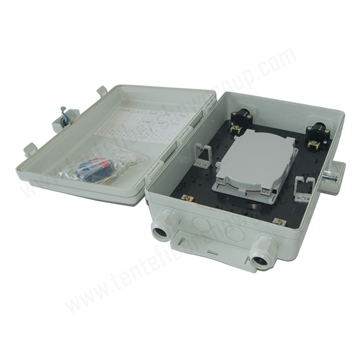

Number of the tray: 2 pcs, can open to 120°

Tray capacity: 12 cores

Packing: 0.02m²

 Weight:  1.91kg(gross weight)
