1．Overview

1.1 Product Introduction

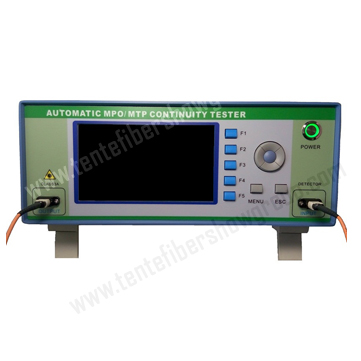

Automatic MPO/MTP Continuity Tester is a kind of intellectualized product to analyze fiber optic patch cords sequence and judge break fiber optic patch cords In the process of the production of MPO/MTP fiber optic patch cords. The tester adopts the visible red light as the light source, it not only can detect the MPO/MTP fiber optic patch cords’ sequence, can also detect fiber optic patch cords sequence to MPO-FAN.  This tester is easy to use, which has a 7 inch color LCD. Obviously, the test results are transparent. It provides a great convenience for producing fiber optic patch cords and testing half-finished or finished fiber optic cords.

1.2 Main Functions

(1)  Test 12 or 24 channels MPO/MTP fiber optic patch cords by a machine;

(2)  Detect fiber optic patch cords sequence to 12 or 24 channels MPO-FAN;

(3)  Fast detection speed and quick response;

(4)  Display by 7 inch color LCD;

(5)  Detect 9/125, 50/125, 62.5/125 fiber optic patch cord core;

(6)  Support alam sound when The product is unqualified;

(7)  Support user-defined MPO/MTP fiber optic patch cords’seque-

nce, all important data does not disappear when the tester shutdown.

1.3 Specifications

1.4 Configuration Instructions

(1) Standard compositions

(2) Reference fiber optic tieline(MPO/PC)

(3) Options

2．Operation Panel Introduction

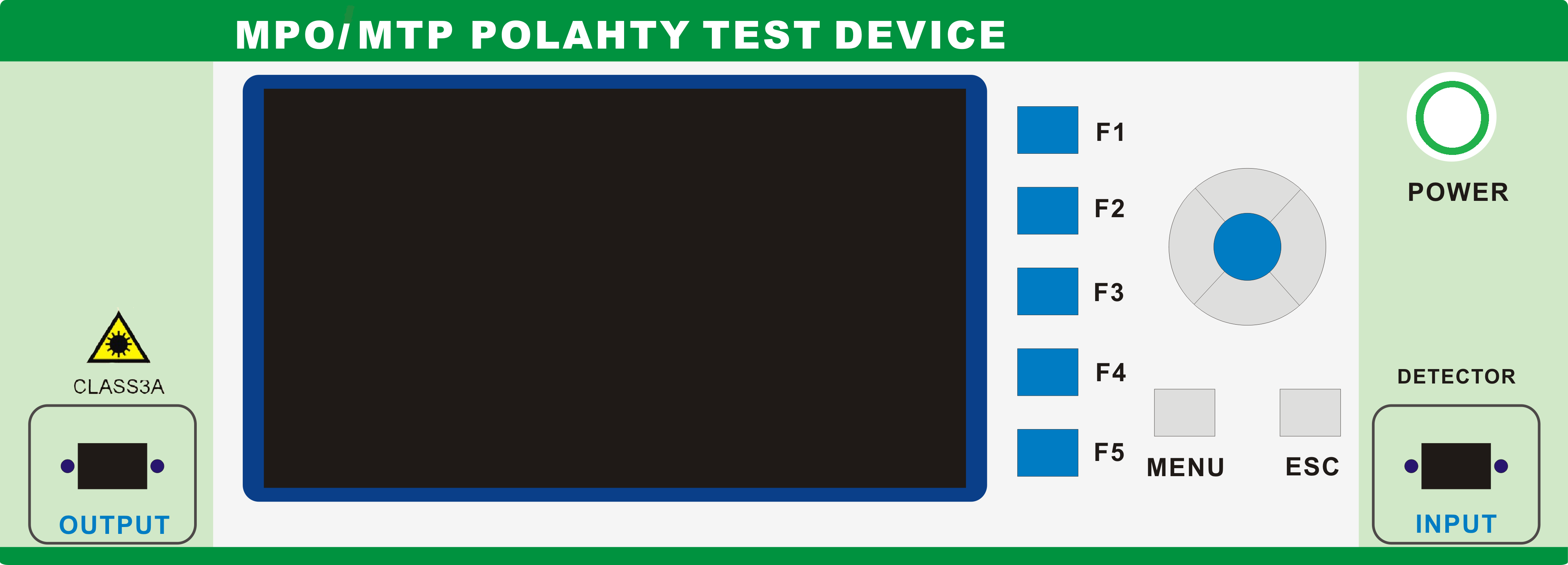

2.1 Front Operation Panel

(1) OUTPUT:  MPO standard adapter, visible red light output;

(2) INPUT:  MPO standard adapter, visible red light output;

(3) F1,F2,F3,F4,F5:  quick function keys;

(4) POWER:  power switch;

(5) MENU:  menu key;

(6) ESC:  return key, the parameters is invalid when the return key was pressed. In addition, there are up key, down key , right key, left key and enter key above menu key and return key.

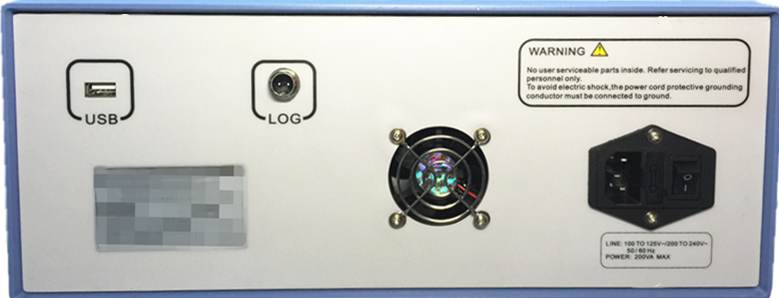

2.2 Back Operation Panel

(1) USB:  USB communication interface;

(2) LOG:  foot pedal;

Moreover, there have a fan on the back operation panel in order to timely heat dissipation.
