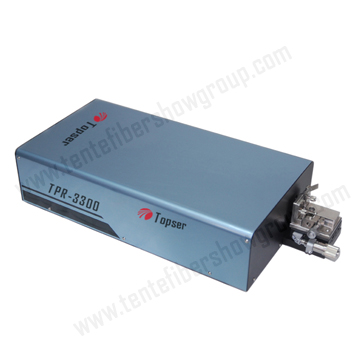

Fiber Ferrule lnterferometer

fiber ferrule interferometer is developed and manufactured by hangzhou wekon

which is an ultimate product for measuring endface geometry of fiber connectors. it have

important applications in the field of optical fiber communication.

Kty features and benefits:

1.calibration certified by national authoritiea

(The National institute of metrology,PR.china)

2.precise data-processing,with high-accuracy measurement results

3.Novel robust algorithm, accurate results even with contaminated fiber surface.

4.perfect anti-vibration design with wonderful repeatability and reproducibility.

5.High-precision and long-life fiber clamp.

6.Friendly software interface and fast measurement.

7.High cost performance,quick sales service.

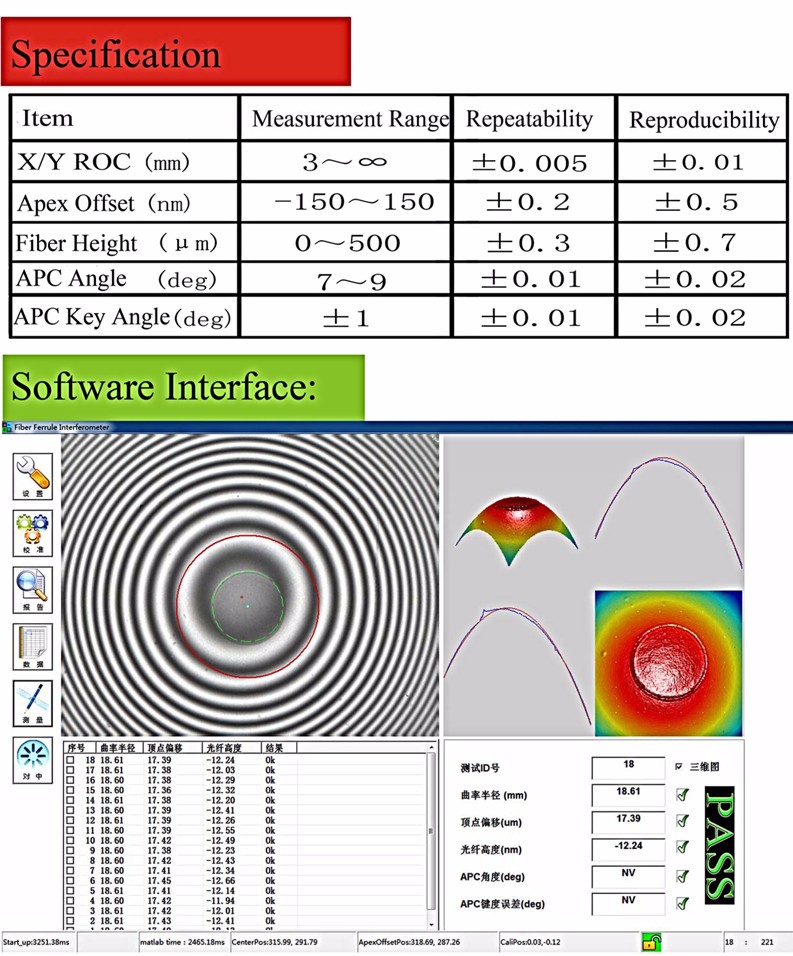

Measurements Applications:

can be used to measure SC/PC、SC/APC、FC/PC、FC/APC、ST、LC/PC、LC/APC、MU/PC type of

connectors with diameter of 1.25mm or 2.5mm. Output parameter includes ROC, A pex Offset,Fiber Height,Polishing

Angle and Key Error which is helpful to improve grinding quality,and lead to perfect light transfer.
