Description:
Mobile Cable (MOC)
Details:
Mobile Cable (MOC)
Description

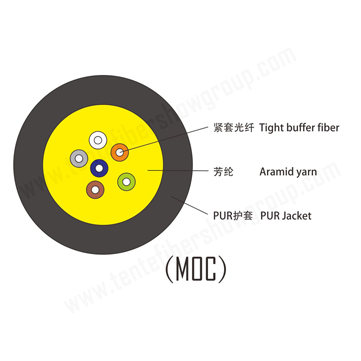

MOC mobile cable use several Φ900µm flame-retardant tight buffer fibres as optical communication medium, the tight buffer fibres wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PUR jacket.
Characteristics
Tight buffer fibre ease of stripping
Tight buffer fibre have excellent flame-retardant performance
Aramid yarn as strength member make cable have excellent tensile strength
Excellent performance of anti-torsion
The outer jacket material have many advantages such as anti-abrasion, anti-aging, anti-oil and flame-retardant etc.
All dielectric structure protect it from electromagnetic influence
Scientific design with serious processing art
Applications
Military communication system cable distribution
Communication between radars or in oil field, mining work place.
Standards
Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC 60794-2-20/21, etc; and meet the requirements of UL approval for OFNR.
Optical Characteristics
50/125 µm | 62.5/125 µm | G.652 | G.655 | ||
Attenuation（+20℃） | @ 850 nm | ≤ 3.5 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.5 dB/km | ≤ 1.5 dB/km | |||
@1310 nm | ≤ 0.50 dB/km | ≤ 0.50 dB/km | |||
@1550 nm | ≤ 0.40 dB/km | ≤ 0.40 dB/km | |||
Bandwidth(Class A) | @ 850 nm | ≥ 600 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 1200 MHz·km | ≥ 600 MHz·km | |||
Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Attenuation at temperature cycling △α(-20℃~+60℃) | @1300 nm | ≤ 0.25 dB/km | ≤ 0.25 dB/km | ||
@1550 nm | ≤ 0.10 dB/km | ≤ 0.15 dB/km | |||
Technical Parameters
Cable Code | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
MOC-G-UK-02Xn | 6.0 ± 0.25 | 30 | 1500/2000 | 1000/5000 | 20D/10D |
MOC-G-UK-04Xn | 6.0 ± 0.25 | 30 | 1500/2000 | 1000/5000 | 20D/10D |
MOC-G-UK-06Xn | 6.5 ± 0.25 | 35 | 1500/2000 | 1000/5000 | 20D/10D |
Note: Xn represents fiber type. In bending radius column，D represents cable diameter. | |||||
Transport/ Storage/ Operating Temperature: -20℃~+75℃, Installation Temperature: -5℃~+50℃.
