Fire Resistant Cable (GJFZY53-FR)
Description

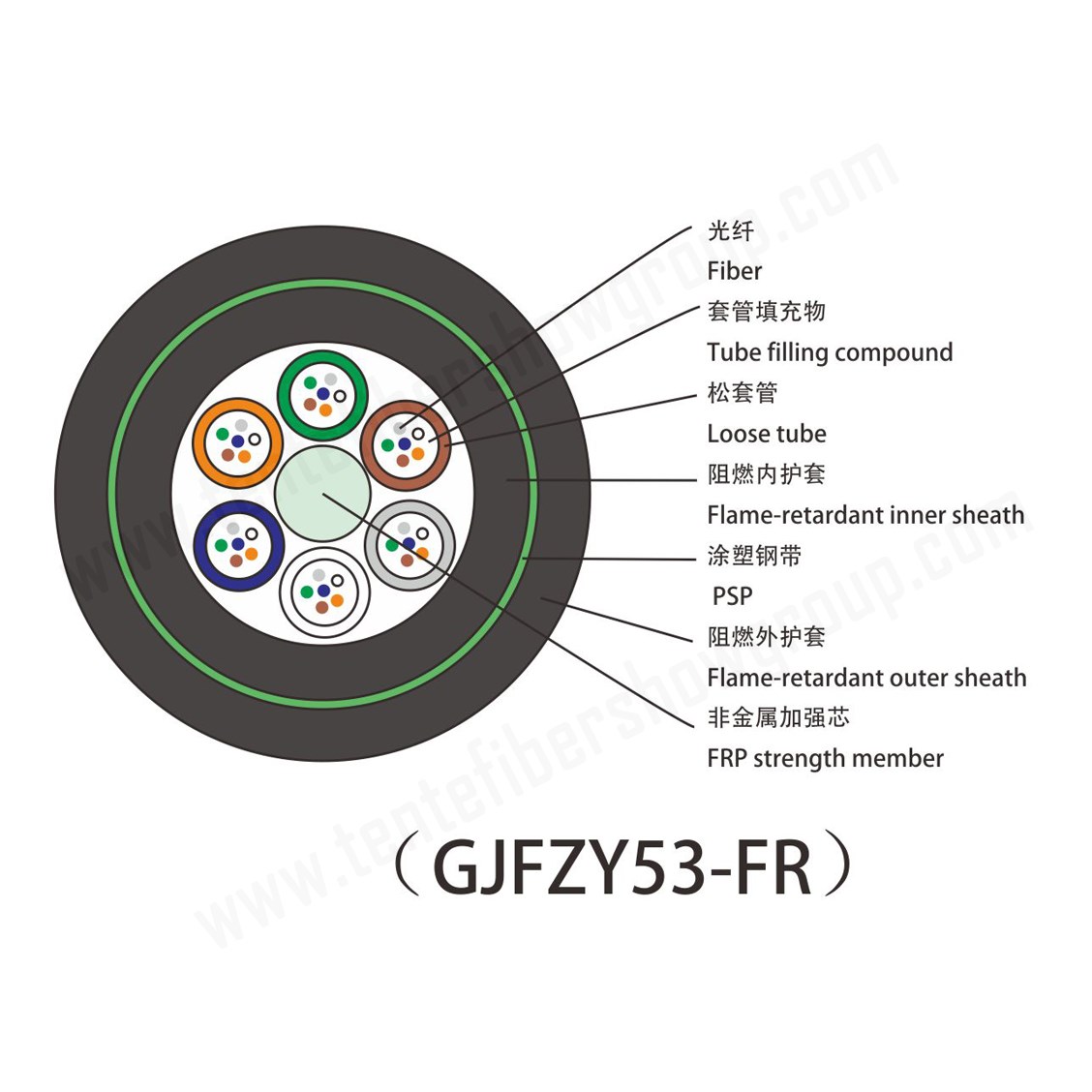

GJFZY53- Fire resistant cable: The fibres, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fibre Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with an inner flame-retardant sheath. After a corrugated steel tape armor is applied, the cable is completed with a outer flame-retardant sheath.
Characteristics
Good mechanical, temperature performance and fire resistant property
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Good crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
Water-blocking material
Scientific design with strict processing
Applications
Indoor distribution
Interconnect from outdoor to indoor for optical cable distribution equipment
Standards
Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC 60794, IEC 60331-25-1999 etc.
Optical Characteristics
50/125 µm | 62.5/125 µm | G.652 | G.655 | ||
Attenuation(+20℃) | @ 850 nm | ≤ 3.5 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.5 dB/km | ≤ 1.5 dB/km | |||
@1310 nm | ≤ 0.50dB/km | ≤ 0.50 dB/km | |||
@1550 nm | ≤ 0.40 dB/km | ≤ 0.40 dB/km | |||
Bandwidth | @ 850 nm | ≥ 600 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 1200 MHz·km | ≥ 600 MHz·km | |||
Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Attenuation at temperature cycling △α(-20℃~+60℃) | @1300 nm | ≤ 0.25 dB/km | ≤ 0.25 dB/km | ||
@1550 nm | ≤ 0.10 dB/km | ≤ 0.15 dB/km |
Technical Parameters
Cable Type | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
GJFZY53(FR)-6~36Xn | 14.2±0.2 | 239 | 400N/1000N | 3000 | 20D/10D |
GJFZY53(FR)-48~60Xn | 15.0±0.2 | 260 | 400N/1000N | 3000 | 20D/10D |
GJFZY53(FR)-72Xn | 15.5±0.2 | 277 | 400N/1000N | 3000 | 20D/10D |
GJFZY53(FR)-96Xn | 17.2±0.2 | 329 | 400N/1000N | 3000 | 20D/10D |
Transport/ Storage/ Operating Temperature: -40℃~+70℃, Installation Temperature: -40℃~+70℃
