Tight Buffer Fiber(GJFJV)
Description

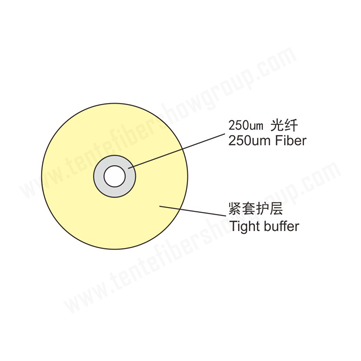

Tight Buffer Fiber is produced as that fiber is sheathed by buffer material. The selection of top-quality fiber, the specific production equipment and the accurately designed die make the performance of product.
Characteristics
Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
Good performance of flame-retardant
Low induced attenuation within the operating temperature range
Excellent geometrical dimension of the fiber
Applications
Indoor cable
Making jumper, pigtail
Data communication
TBF Colour
TBF | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Colour | Blue | Orange | Green | Brown | Slate | White | Red | Black | Yellow | Violet | Pink | Aqua |
Colour Code | B | O | G | N | S | W | R | K | Y | V | P | A |
Optical Characteristics
50/125 µm | 62.5/125 µm | G.652 | G.655 | ||
Attenuation(+20℃) | @ 850 nm | ≤ 3.5 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.5 dB/km | ≤ 1.5 dB/km | |||
@1310 nm | ≤ 0.45 dB/km | ≤ 0.50 dB/km | |||
@1550 nm | ≤ 0.30 dB/km | ≤ 0.50 dB/km | |||
Bandwidth(Class A) | @ 850 nm | ≥ 600 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 1200 MHz·km | ≥ 600 MHz·km | |||
Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Attenuation at temperature cycling△α(-20℃~+60℃) | @1300 nm | ≤ 0.25 dB/km | ≤ 0.25 dB/km | ||
@1550 nm | ≤ 0.10 dB/km | ≤ 0.15 dB/km |
Technical Parameters
TBF | Fiber Coating Diameter | TBF | TBF | Tensile Strength | Crush Resistance | Bending Radius | Coating Strip Force |
GJFJV-I | 245 ± 7 | 900 ± 50 | 0.9 | 3/6 | 100/500 | 20D/10D | ≤ 13.3 |
Note: The symbol D in Bending Radius Column represents TBF diameter. |
Transport/ Storage/ Operating Temperature: -20℃~+60℃, Installation Temperature: -5℃~+50℃
